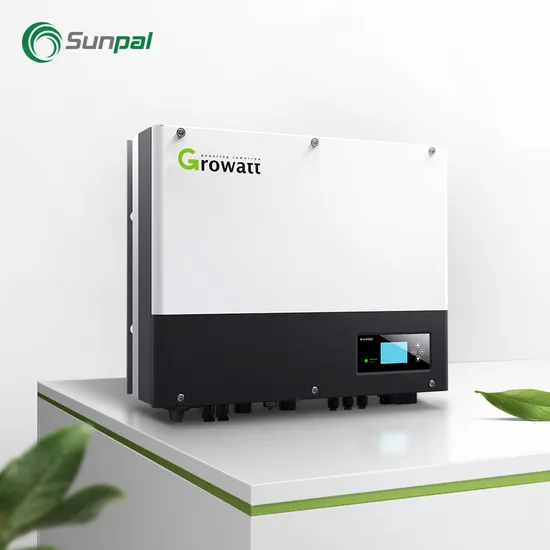

Growatt Hybrid on/off Grid Inverter with MPPT Single Phase Split Phase 5kw 6kw 10kw Sph 5000 Sph 6000 230VAC
| US$1,199.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
Growatt SPH 5000
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Rated Power
5000W
Battery Voltage
48V DC
Application
Solar Power System Home
Product Name
MPPT Hybrid Solar Inverter
Color
White
Communication
WiFi / RS485
Protection
IP65
Feature
Energy Saving
Start Voltage
150V
Max. PV Voltage
550V
PV Voltage Range
120V-550V
Number of Mpp Trackers / Strings Per Mpp
2/1
Transport Package
Carton with Pallets
Specification
450/560/180mm
Trademark
Growatt
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Week
Product Description
Product DescriptionHybrid Storage System
Online Smart Monitoring
Product Parameters
| Datasheet | SPH 3000 | SPH 3600 | SPH 4000 | SPH 4600 | SPH 5000 | SPH 6000 |
| DC input data | ||||||
| Max. recommended PV power | 6600W | 6600W | 6600W | 8000W | 8000W | 8000W |
| Start voltage | 150V | |||||
| Max. PV voltage | 550V | |||||
| PV voltage range | 120V-550V | |||||
| MPPT voltage range/nominal voltage | 150V-550V /360V | |||||
| Max. input current of tracker A/B | 12A/12A | |||||
| Number of MPP trackers / strings per MPP tracker | 2/1 | |||||
| AC Output | ||||||
| Rated AC output power | 3000W | 3680W | 4000W | 4600W | 4999W | 6000W |
| Max. AC apparent power | 3000VA | 3680VA | 4000VA | 4600VA | 5000VA | 6000VA |
| Max. output current | 16A | 16A | 22A | 22A | 22A | 27A |
| Nominal AC output voltage | 230V | |||||
| Nominal grid frequency | 50/60Hz, ±5Hz | |||||
| Power factor at rated power | 1 | |||||
| Displacement power factor | 0.8leading…0.8lagging | |||||
| THDI | <3% | |||||
| AC output power(Backup) | ||||||
| Max. output power | 3000W | |||||
| Rated AC output voltage | 230Vac | |||||
| Rated AC output frequency | 50/60Hz | |||||
| Automatic switchover time | <0.5S | |||||
| Battery data | ||||||
| Battery voltage range | 42~59V | |||||
| Max. charging voltage | 58V | |||||
| Max charging and discharging current | 66A | |||||
| Max charging and discharging power | 3000W | |||||
| Battery type | Lithium /Lead-acid | |||||
| Capacity of battery | 50-2000AH | |||||
| Efficiency | ||||||
| Max. efficiency | 97.5% | 97.5% | 97.5% | 97.6% | 97.6% | 97.7% |
| Euro European efficiency | 97.0% | 97.0% | 97.0% | 97.1% | 97.1% | 97.1% |
| MPPT efficiency | 99.9% | |||||
| Protection devices | ||||||
| DC switch | Yes | |||||
| DC reverse polarity protection | Yes | |||||
| Battery reverse protection | Yes | |||||
| Output over current protection | Yes | |||||
| Output over voltage protection | Yes | |||||
| Ground fault monitoring | Yes | |||||
| Grid monitoring | Yes | |||||
| Integrated all-pole sensitive leakage | Yes | |||||
| General Data | ||||||
| Dimensions (W / H / D) | 450/560/180mm | |||||
| Weight | 27kg | |||||
| Operating temperature range | -25°C ... +60°C | |||||
| Altitude | 2000m | |||||
| Self-Consumption | < 3 W | |||||
| Topology(solar) | Transformerless | |||||
| Topology(battery) | HF transformer | |||||
| Cooling concept | Natural | |||||
| Environmental Protection Rating | IP65 | |||||
| Relative humidity | 100% | |||||
| DC connection | MC4/H4(Optional) | |||||
| AC connection | Connector | |||||
| Interfaces: RS232/RS485/CAN/USB | Yes | |||||
| Monitor : RF/WIFI/GPRS | Optional | |||||
| Display | LCD+LED | |||||
| Warranty: 5 years / 10 years | Yes /Optional | |||||
