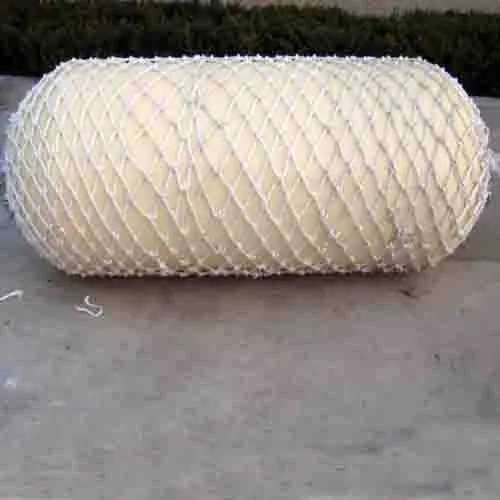

Quay Pneumatic Rubber Fender Rubber Floating Dock Fender

Product Description

Pneumatic fenders, a kind of marine fender, also called yokohama rubber fender, is a leading anti-collision device for marine application in the world today. This compressed air rubber fender is used as a protective medium. Therefore, pneumatic rubber fenders serves as a protective medium against collision when ship-to-ship contact (STS) and ship-to-berthing (STB). Pneumatic fenders has the advantages of massive energy absorption with low unit surface pressure acted upon the ship. So penumatic fenders has become an ideal ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs.
Core attributes
Pneumatic rubber fenders have any advantages including:
*Easy and fast to deploy;
*Very low reaction and hull pressure;
*Performance adjustable by varying initial pressure;
*Suitable for areas with large or small tides;
*Maintains large clearances between hull and structure;
*Optional chain-tyre nets for heavy duty applications;
*Low maintenance.
Application
Pneumatic yokohama rubber fenders are suitable for many applications including:
*Tankers, Gas Carriers and Bulk Cargo Ships;
*Fast ferries and aluminum hulled vessels;
*Temporary of permanent installations;
*Rapid response and emergency fendering;
*As stand-off fenders to realign ships with shore facilities.

Pneumatic Fender Technical Performance Table Specifications (mm) At 60% compression; initial pressure is 0.05MPa Weight of sphere ±10% Diameter Length Energy Absorption (KJ) Reaction Force (KN) KG 200 500 300 500 500 1000 6 64 25 600 1200 10 86 35 700 1500 17 137 50 1000 1500 32 181 80 1000 2000 45 257 100 1200 2000 63 297 120 1350 2500 100 426 170 1500 3000 153 579 320 1700 3000 190 637 400 2000 3500 308 875 590 2500 4000 663 1380 1000 2500 5500 932 2010 1400 3000 5000 1050 2030 1800 3000 6000 1315 2488 2200 3300 6500 1814 3015 2700 3500 6000 2018 3286 2800 3500 6500 2325 3656 3200 3500 7000 2650 4018 3600 3600 7200 3180 4821 4320
