Feed Milling Machine Automatic Fish Feed Line for Animal Poultry Chicken Feed Pellet Production Line

Product Description

Feed Milling Machine Automatic Fish Feed Line for Animal Poultry Chicken Feed Pellet Production Line

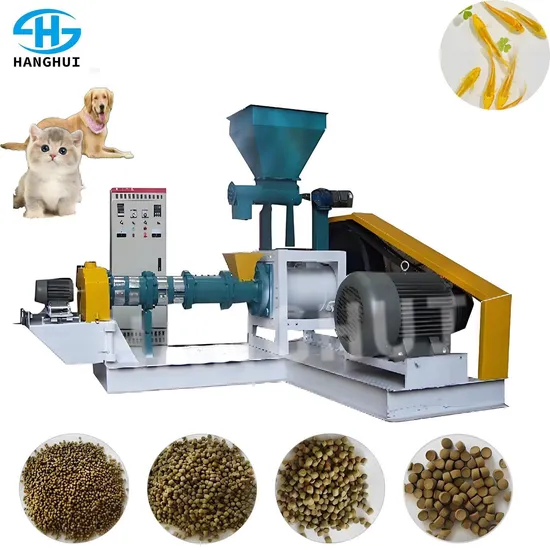

Introduction of Floating Fish Feed Pellet Making Machine Fish Feed Production Line
Fish feed extruder,also called fish feed pellet mill,is widely used for producing variety materials into high-grade aquctic feed pellets for fish,catfish,shrimps,crab etc.The final feed pellets have unique shape and good taste,high nutrition and smooth textures.For feeds of fish and shrimp,the floating time no water surface can be adjusted by the extrusion degree adjustment when extruding the pellets.Currently,floating fish feed extruder has become an ideal for small and medium fish farm(catfish,tilapia,shrimp etc.)
Advantages of Floating Fish Feed Pellet Making Machine Fish Feed Production Line
1. This fish food extruder is widely used for producing floating feed pellets of all kinds of aquatic animal.
2. Advanced technology and humanized design ensures easy operation and reliable performance.
3. High efficiency, low power consumption
4. Screw sleeve of this small fish food extruder adopts enchase alloy steel strip structure, which guarantees long service life.
5. Different moulds can be chosen to make pellets with different diameters and shapes.
6. Feed pellets dia. Is 1-20mm.
Detailed Photos
Common Raw Material for Floating Fish Feed Pellet Making Machine Fish Feed Production Line
Our fish feed making machine is based on the raw material of corn meal, flour, Wheat middling, Wheat bran, rice bran, soybean meal, cottonseed meal, fish meal, bone meal, meat meal and etc.
------ Moisture of raw material: 20% -25%
------ Raw material type: Powder
------ Fineness of material: 60-80 mesh
Fish feed making machine can be classified into dry type machine & wet type machine.
*** Dry type --- Easy operation and simple.
*** Wet type--- With conditioner and need steam boiler as supporting device to work, has high yield than dry type in the same power.
Parameters of Floating Fish Feed Pellet Making Machine Fish Feed Production Line

Product Parameters

Model	Capacity	Motor power	Feed power	Cut power	Screw diameter
HH-D60	120-150kg/h	15KW	0.4KW	0.4KW	60mm
HH-D70	180-250kg/h	18.5KW	0.4KW	0.75KW	70mm
HH-D80	300-350kg/h	22KW	0.6KW	1.5KW	80mm
HH-D90	400-450kg/h	30KW	0.8KW	2.2KW	90mm
HH-D120	500-700kg/h	55KW	1.1KW	2.2KW	120mm
HH-D135	800-1000kg/h	75KW	1.1KW	2.2KW	135mm
HH-D160	1200-1500kg/h	90KW	1.5KW	2.2KW	155mm
HH-D200	1800-2000kg/h	132KW	1.5KW	3KW	195mm

Parameters of Floating Fish Feed Pellet Making Machine Fish Feed Production Line

Model	Capacity	Motor power	Feed power	Cut power	Screw diameter
HH-W60	200-250kg/h	15KW	0.4KW	0.75KW	60mm
HH-W70	300-400kg/h	18.5KW	0.4KW	0.75KW	70mm
HH-W80	500-600kg/h	22KW	1.1KW	0.75KW	80mm
HH-W90	700-800kg/h	37KW	1.1KW	1.1KW	90mm
HH-W120	1000-1200kg/h	55KW	1.1KW	1.1KW	120mm
HH-W135	1400-1600kg/h	75KW	1.5KW	2.2KW	135mm
HH-W160	2000-3000kg/h	90KW	2.2KW	2.2KW	155mm
HH-W200	3000-5000kg/h	132KW	2.2KW	3KW	195mm

We also have automatic line for Floating Fish Feed Pellet Making Machine Fish Feed Production Line
The floating /non-floating food production line has followng flowchart:
Material crushing----powder mixing----pellets extruding---pellet drying---pellet cooling---pellet packing.
1) Crusher----To crush the raw material into powder.
2) Mixer -------To make all kinds of powder mixed evenly.
3) Extruder----To make many kinds of feed pellet. Such as fish feed, pet feed.
4) Dryer--------To remove the extra moisture of the pellet.
5) Cooler------ To reduce the temperature of the pellet after dring.
6) Packaging-- After cooling the feed pellet, we could package it.
Final product of Floating Fish Feed Pellet Making Machine Fish Feed Production Line
Packing and shipping of Floating Fish Feed Pellet Making Machine Fish Feed Production Line
·WHY CHOOSE HANGHUI ?
Certified with ISO9001 quality management system and CE certificate, Zhengzhou Hanghui Machinery Co., Ltd is the forerunner and expert among the fertilizer and Animal feed machinery manufacturers in Henan Province, China.
Totally, we have 3 factories, land area over 10 millions cubic meters, with more than 25 technical engineers and 70 workers. Thus we have strong technical strength, high-quality staff and CAD design center, thus we can provide fertilizer and feed plant design, process improvement, equipment manufacture, installation, commissioning, formula and etc. Since 2009, we have exported the machines to more than 100 countries.
By the end of 2024, we have established more than 70 factories around the world, for example, 100,000Ton/Year NPK Fertilizer plant in SA, 150,000Ton/Year NPK Fertilizer plant in Syria, 80,000Ton/Year NPK Fertilizer plant in Zimbabwe, 50,000Ton/Year Organic Fertilizer plant in Nepal, 5,000Ton/Year Powder Organic Fertilizer plant in Nepal, 20,00Ton/Year Organic Granule Fertilizer plant in Nepal, 10,000Ton/Year chicken feed plant in Nigeria, 20,000Ton/Year Floating fish feed plant in Nigeria, 20,000Ton/Year Fish feed Plant in Iran, 5,000Ton/Year Floating fish feed plant in Congo, 10,000Ton/Year Bio-pellet plant in Vietnam, 80,000Ton/Year feed-pellet plant in Thailand, 50,000Ton/Year Bio-pellet Plant in USA, 30,000Ton/Year Bio-pellet Plant in Bulgaria etc.
Based on the professional maintenance team, adequate inventory spare parts, standardized after-sales service, perfect customer return visit management, mature training system, we always win most customers around the world.
We are experienced in manufacturing professional equipment for fertilizer and feed production. As for manage principles, we insist to hold the view of "quality, mission, and values."
·Quality
Being a large and professional machinery manufacturer, our factory has manufactured a series of modern specified equipment for fertilizer and feed production, including both the equipment for each process of the production line and the whole production line. Our equipment adopts the latest technology, which can make the production process more environment friendly, energy-saving and economic. Most importantly, it can ensure the quality of the final fertilizer and feed products.
·Mission
Our factory is featured with its strong technical powers, complete processing equipment and reasonable management principles. Our products are various and complete, including the fertilizer compost turner machine, crusher, mixer, fertilizer granulation machine, polishing machine, dryer, cooler, rotary sieve, coating machine, packaging machine as well as the complete new-type fertilizer production line for both organic fertilizer and compound fertilizer production. For the feed industry, we can offer you the hammer mill, Mixer, flat die/ring die pellet mill, feed extruder, air cooler, packager, and other related machines.
We aim at providing you with a more scientific and efficient way of producing qualified fertilizer and nice feed.
·Values
We always insist that quality and customers should come first. Therefore, we strive every effort to improve our services and make breakthroughs step by step, which in turn will make our products better meet the needs of our customers and improve our competitiveness in the fertilizer market all over the world.
Your satisfactions are all that we pursuit! Contact us if you are interested in our products. We are honored to provide you with any service.
