Hg260p Gpon Epon Zte Chip Set Xpon ONU 1ge 3fe 1tel + 2.4G/5g FTTH Ont AC WiFi

Product Description

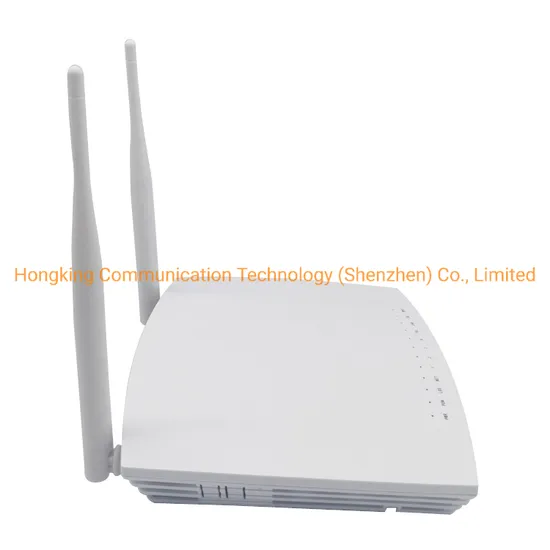

Brand new HG260P 1GE+3FE+1TEL+USB+WIFI 2.4G &5G Dual Band ONU
The HG260P is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users.
It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting.
At the network side, it supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS ports, one USB 2.0 port, and Wi-Fi 802.11n 2x2 2.4GHz & 802.11ac 3x3 5GHz concurrent.
By using the HG260P, the home users can access data, video and voice services, and enjoy high-speed internet connection.HG260P XPON ONT Features: Net dimensions: 205 mm (W) x 170 mm (H) x 35 mm (D) Net weight: 0.3kg Typical Power consumption: 12.5 W Noise: Null Heat dissipation mode: Natural heat dissipation Power supply: Rated 12 V DC (through the external AC/DC adapter) Mounting: the desktop or on the wall Operating environment: 0ºC-40ºC Relative humidity: 5%-95% Atmospheric pressure: 70-106 kPa MTTR: 30 minutes PRODUCT HIGHLIGHTS •Supported service: VoIP, Internet, IPTV •GPON: 8 T-CONTs, 32 GEM Ports •VLAN: 802.1Q, 802.1P, 802.1ad •MAC address table: 1k •L3 function: DHCP server/Client, DNS Client, NAT •IPv6: Dual Stack, DS-Lite •VoIP: SIP/H.248, G.711/G.722, T.30/T.38 •Wi-Fi: 4 SSIDs, 2x2 MIMO 2.4G, 3x3 MIMO 5G , WPS •Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK •Multicast: IGMP v1/v2/V3 Snooping/Proxy, MLD v1 Snooping•Multicast group: 64 •QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR •Management: local web management, OMCI, TR069 •USB: DLNA DMS, USB backup
