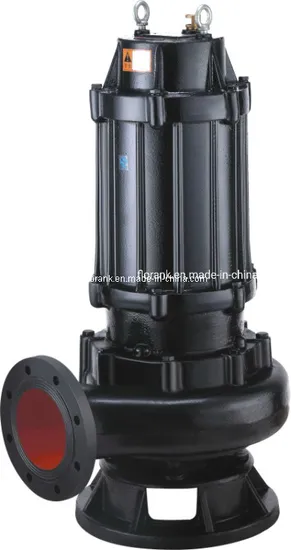

(WQ series) Electric Submersible Sewage Water Pump for Dirty Water
| US$100.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
WQ7-15-1.1, WQ15-40-5.5, WQ80-15-7.5 and etc
Driving Type
Motor
Material
Cast Iron
Structure
Single-stage Pump
Assembly
Pipeline Pump
Power
Electric
Start Up
Electric Pump
Type
Sewage Pump
Application
Submersible Pump, Sewage Pump
Industry
Fisheries Pump
Media
Sewage Pumps
Performance
Sewage Pump for Dirty Water
Theory
Centrifugal Pump
Outlet
2inch ,3 Inch ,4 Inch ,5inch ,6 Inch
Motor Material
Cast Iron
Transport Package
Wooden Case
Specification
CE
Trademark
FLORANK
Origin
Taizhou, Zhejiang
Production Capacity
8000PCS /Year
Packaging & Delivery
Package Size
100.00cm * 50.00cm * 40.00cm
Package Gross Weight
46.000kg
Product Description
Submersible sewage water Pump (WQ series) for dirty waterWorking Conditon
Max. Submerged depth: 5m
Fluid temperature up to +40CV
Max ambient temperature +400C
Applicaton&Feature
The pumps are suitable for handling refluent water mixed with mud, liquids containing air or gas, as well
As threated and putrid mud. They are designed for dirty water, sewage, industrial waste, etc. And they are suitalbe for installation in sewers, galleries, wells, underground car parks, etc.
They are designed for toilets drainage, agricultrual drainage, septic tank drainage, animal husbandry
Drainage, factory waste water drainage.
Component Material
Pump body: Cast iron
Motor bracket: Cast iron
Impeller: Cast iron
Motor shaft: CS45# or SS
Mechanical seal: Ceramic-graphite or silicon carbide-carbide alloy
Motor Information
380V, 50Hz, 60Hz
Continuous duty.
Insulation calss: E
Protection: IP X8
| Model | Power | discharge | Rated. Flow | Rated Head | G.W | Dimension | |
| three phase | Kw | Hp | inch | m3/h | m | kg | mm |
| WQ6-16-0.75 | 0.75 | 1 | 2 | 6 | 16 | 22 | 470x250x250 |
| WQ10-10-0.75 | 0.75 | 1 | 2.5 | 10 | 10 | 29 | 520x210x275 |
| WQ15-7-0.75 | 0.75 | 1 | 2.5 | 15 | 7 | 31 | 520x210x275 |
| WQ15-9-1.1 | 1.1 | 1.5 | 2 | 15 | 9 | 32 | 540x240x280 |
| WQ7-15-1.1 | 1.1 | 1.5 | 2 | 7 | 15 | 31 | 540X240X280 |
| WQ12-15-1.5 | 1.5 | 2 | 2 | 12 | 15 | 41 | 610X260X305 |
| WQ18-15-1.5 | 1.5 | 2 | 2.5 | 18 | 15 | 46 | 610X260X305 |
| WQ25-7-1.5 | 1.5 | 2 | 3 | 25 | 7 | 40 | 610X260X305 |
| WQ25-10-1.5 | 1.5 | 2 | 2.5 | 25 | 10 | 42 | 610X260X305 |
| WQ9-22-2.2 | 2.2 | 3 | 2 | 9 | 22 | 47 | 635x260x330 |
| WQ15-20-2.2 | 2.2 | 3 | 2.5 | 15 | 20 | 49 | 635x260x330 |
| WQ25-15-2.2 | 2.2 | 3 | 3 | 25 | 15 | 49 | 635x260x330 |
| WQ27-15-2.2 | 2.2 | 3 | 2.5 | 27 | 15 | 49 | 635x260x330 |
| WQ35-7-2.2 | 2.2 | 3 | 3 | 35 | 7 | 50 | 635x260x330 |
| WQ42-9-2.2 | 2.2 | 3 | 2.5 | 42 | 9 | 51 | 655x270x325 |
| WQ15-30-3 | 3 | 4 | 2.5 | 15 | 30 | 54 | 535x260x330 |
| WQ20-22-3 | 3 | 4 | 3 | 20 | 22 | 54 | 535x260x330 |
| WQ25-20-3 | 3 | 4 | 3 | 25 | 20 | 54 | 535x260x330 |
| WQ37-13-3 | 3 | 4 | 3 | 37 | 13 | 68 | 720x320x390 |
| WQ43-13-3 | 3 | 4 | 4 | 43 | 13 | 68 | 720x320x390 |
| WQ50-7-3 | 3 | 4 | 4 | 50 | 7 | 65 | 720x320x390 |
| WQ50-10-3 | 3 | 4 | 4 | 50 | 10 | 68 | 720x320x390 |
| WQ40-15-4 | 4 | 5.5 | 2.5 | 40 | 15 | 81 | 755X325X395 |
| WQ60-10-4 | 4 | 5.5 | 4 | 60 | 10 | 85 | 800X335X450 |
| WQ15-40-5.5 | 5.5 | 7.5 | 2.5 | 15 | 40 | 85 | 755X325X395 |
| WQ30-30-5.5 | 5.5 | 7.5 | 3 | 30 | 30 | 88 | 800X320X380 |
| WQ65-15-5.5 | 5.5 | 7.5 | 4 | 65 | 15 | 105 | 345X325X1050 |
| WQ65-20-7.5 | 7.5 | 10 | 4 | 65 | 20 | 140 | 415x415x1100 |
| WQ80-15-7.5 | 7.5 | 10 | 4 | 80 | 15 | 140 | 415x415x1100 |
| WQ100-10-7.5 | 7.5 | 10 | 6 | 100 | 10 | 140 | 415x415x1100 |
