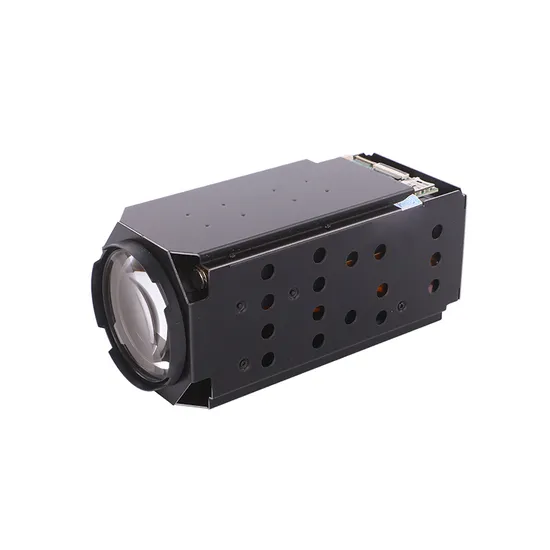

4MP 52X Zoom 317mm Lens Long Range CCTV IP Block Camera for PTZ Security Camera

Product Description

Max Resolution: 4MP(2560*1440),Output Full HD :2560*1440@30fps Live Image Support H.265/H.264/MJPEG Video Compression Algorithm, Multi-level Video Quality Configuration and Encoding Complexity Settings Starlight Low Illumination, 0.0005Lux/F1.4(Color),0.0001Lux/F1.4(B/W) ,0 Lux with IR 52x Optical Zoom, 16x Digital Zoom Support Area Intrusion Detection, Cross-border Detection, Motion Detection, Privacy Shield, ect. Support 3-stream Technology, Each Stream Can Be Independently Configured With Resolution And Frame Rate ICR Automatic Switching, 24 Hours Day and Night Monitor Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics Supports Optical Defog, Maximum Improves The Foggy Image Support 255 Presets, 8 Patrols Support Timed Capture and Event Capture Support One-click Watch and One-click Cruise Functions Support One Channel Audio Input and Output Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output Support 256G Micro SD / SDHC / SDXC Support ONVIF Optional Interfaces for Convenient Function Expansion Small Size and Low Power, Easy to Inset PT Unit, PTZ

Specifications
Camera	Image Sensor	1/1.8" Progressive Scan CMOS
	Minimum Illumination	Color:0.0005 Lux @ (F1.4,AGC ON); B/W:0.0001Lux @ (F1.4,AGC ON)
	Shutter	1/25s to 1/100,000s; Support delayed shutter
	Aperture	PIRIS
	Day/Night Switch	ICR cut filter
	Digital zoom	16x
Lens	Focal Length	6.1-317mm, 52x Optical Zoom
	Aperture Range	F1.4-F4.7
	Horizontal Field of View	61.8-1.6° (wide-tele)
	Minimum Working Distance	100mm-2000mm (wide-tele)
	Zoom Speed	Approximately 6s (optical, wide-tele)
Compression Standard	Video Compression	H.265 / H.264 / MJPEG
	H.265 Type	Main Profile
	H.264 Type	BaseLine Profile / Main Profile / High Profile
	Video Bitrate	32 Kbps~16Mbps
	Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
	Audio Bitrate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Image(Maximum Resolution:2560*1440)	Main Stream	50Hz: 25fps (2688*1520,1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2688*1520,1920 × 1080, 1280 × 960, 1280 × 720)
	Third Stream	50Hz: 25fps (1920 ×1080); 60Hz: 30fps (1920 ×1080)
	Image Settings	Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
	BLC	Support
	Exposure Mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
	Focus Mode	Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
	Area Exposure / Focus	Support
	Optical Defog	Support
	Image Stabilization	Support
	Day/Night Switch	Automatic, manual, timing, alarm trigger
	3D Noise Reduction	Support
	Picture Overlay Switch	Support BMP 24-bit image overlay, customized area
	Region of Interest	Support three streams and four fixed areas
Network	Storage Function	Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support)
	Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
	Interface Protocol	ONVIF(PROFILE S,PROFILE G)
Smart Features	Smart Detection	Cross-border detection, area intrusion detection, entering / leaving area detection, hovering detection, personnel gathering detection, fast motion detection, parking detection / take detection, scene change detection, audio detection, virtual focus detection, face detection
Interface	External Interface	36pin FFC (Network port, RS485, RS232, CVBS, SDHC, Alarm In/Out Line In/Out, power)
General	Working Temperature	-30ºC~60ºC, humidity≤95% (non-condensing)
	Power supply	DC12V±25%
	Power consumption	2.5W MAX (ICR, 4.5W MAX)
	Dimensions	175.5x75x78mm
	Weight	925g
