High Speed Full Color Digital UV Inkjet Printing Machine

Product Description

Digital UV Inkjet Printing System

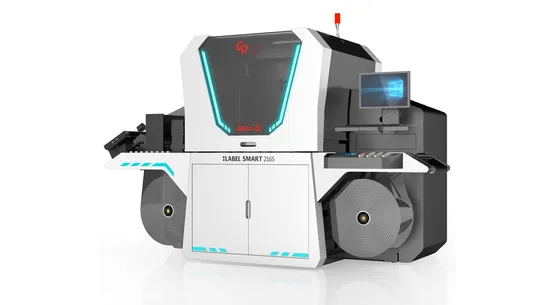

Model: Label Smart
Brief Introduction:
Lable Smart makes single-piece printing possible. An intelligent production system can be set up to realize zero inventory, agile production and point-to-point logistics, and build a new IoT production model.The stable and colorful quality meets the requirements of the digital printing market.
Features:
Allowing for small-format digital printing and personalized full-color inkjet coding.
High cost-effectiveness and reasonable cost of use.
Simple and user-friendly printing operation reduces operating costs and brings in higher profits.
High-speed, full-color printing, easily transitions in substrate and workflow which allows maximum advantage in digital label printing.
Technical Specs:

Model	Label Smart 216S		Label Smart 330S
Technical specifications
Printing Technology	Piezoelectric Inkjet
Print Method	Roll to Roll, One - Side
Color Configuration	CMYK/W+CMYK/W+W+CMYK
Number Of Channels	6
Maximum Speed	50 m/min (CMYK); 25 m/min (CMYK + W)
Resolution	600×600dpi ; 600×1200dpi
Ink Type	UV Ink
Curing Method	UV LED
Media
Media Width	80-330mm
Maximum Print Width	216mm		324mm
Media Thickness	50-400 μm
Media Type	PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll Diameter	600mm
Power
Power Supply	380V
Power	15kW		30kW
Compressed air
Compressed air	>6.5MPa
Air consumption	>10L/min
Environment
Operation Temperature	20 - 27°C
Operation Humidity	40 - 70% Relative humidity
System
Skew Adjustment System
Electrostatic Dust Removal
Water Cooling System

Key benefits:
Highly flexible feeding system, suitable for all materials for 80-330mm wide label printing.Imported high-precision industrial print head has higher fire ignition frequency and service life.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration.Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.Resolution up to 600 X 1200 dpi. The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability.Automatic winding and unwinding system can effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.LED cold light curing unit, energy saving and high efficiency.
Highlights of the Machine:
1. Highly Flexible Feeding System
Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE) , paper, among others.
2. Stable And High-Speed Printing Unit
Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic.
3. High Quality UV Eco-Friendly Ink
Benefit from the excellent ink formula, GIP's UV eco-friendly ink can still achieve excellent stability while ensuring environmental protection.Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
4. AGFA APOGEE Workflow Software System
The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier, good for production.
5. Automatic Winding And Unwinding System
ffectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production.
6. Unique Print Head Control System
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
7. Unique Multiple Curing Technology
LED cold light curing unit, energy saving and high efficiency. Each color group is equipped with a curing module, so the ink droplets can be quickly and accurately attached to different media without spreading. After the four-color printing is completed, the ink is completely cured by the main curing system, and the colors are lifelike.
