Vertical Shredder - Z Series Pre-shredded Metal Scrap from Twin Shaft Shredding

Product Description

Vertical Shredder - Z Series Pre-shredded Metal Scrap from Twin Shaft Shredding
Product Description
Typical Applications Include:
ELVs (End of Life Vehicles) - Pre-shredded vehicle bodies
Refrigerator/Fridge Recycling - Pre-shredded Scrap Steel - Pre-shredded steel sheets, metal drums, etc.
Electronic Scrap - WEEE Directive Materials, meatballs.
C&D Waste - Concrete, Timber, Plastics, etc.
Paper Industry Waste - Ragger tails
Timber Waste - Pallet wood, etc.
Description

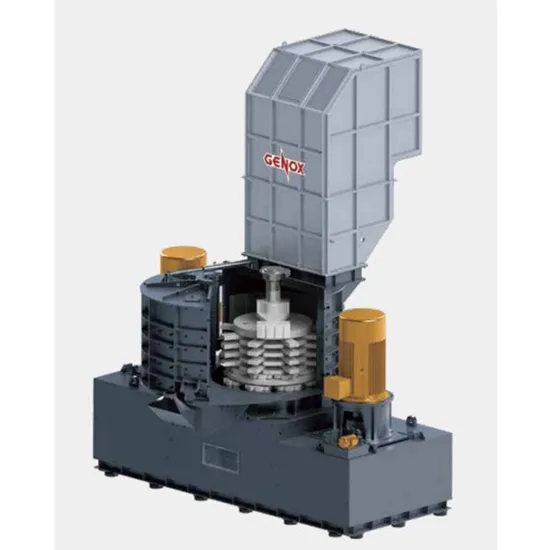

Z series large vertical shredders are mostly recommended for applications processing pre-shredded metal scrap from twin shaft shredding systems. These machines aggressively size reduce and densify pre-shredded material whilst liberating the various different fractions, allowing for better separations and reduced transportation costs. The breakers in the upper part of the chamber smash the material until it is small enough to enter the gap between the milling rings and chamber liners. When the material enters the second stage the milling rings impact, grind and roll the material into clean, dense nuggets. When milled in to small enough pieces, the balled-up material falls into the lower chamber and is ejected by the discharge paddles. The three above stages create a product which is both clean and of high bulk density suitable for transportation.
Features
Strong welded construction from heavy gauge, wear resistance steel plate.
Integral, annealed and CNC bored two piece chamber for quick access and simplified maintenance.
Durable, wear resistant, replaceable breakers, milling rings and chamber liners.
Oversized, spherical rotor bearings with advanced seal protection - prevents bearing damage due to product migration.
Adjustable product size control by changing the chamber liners or rotor tooling.
Replaceable heavy-duty wear plates in the shredding chamber.
Stand Alone Electrical Control Panel - using quality Schneider components and Siemens PLC.
Tested, Approved and Certified to the applicable CE safety standards.
Specifications

Model		Z1500	Z3500	Z6000
Main Drive(kw)		110	132+132	220+220
Rotating diameter(Φmm)		1080	1440	1580
Rotation Speed(rpm)		520/650	520/650	520/650
Chamber Diameter(mm)		1280	1650	1950
Chamber Height(mm)		1680	1750	1900
The Minimum clearance(mm)		30/50/80	30/50/80	30/50/80
Number of Breakers(pcs)		2	2	2
Number of Rings(pcs)	Standard rotor	36	64	64
	H type rotor	12	16	16
The quantity of hammer(PCS)	Standard rotor	/	/	/
	H type rotor	30	40	40
The quantity of upper lining plate(pcs)		12	12	12
The quantity of lower lining plate(pcs)		12	12	12
Dimension	L	3300	5300	7200
	W	3800	3800	5400
	H	5000	6300	6800
	A	1300	1900	1620
	B	1200	1600	1600
	C	5000	4800	5400
	D	600	800	1000
	E	500	750	800
	F	750	1300	1000
Weight(kg)		18000	29000	37000

Detailed Photos
Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
