Plastic Film Blowing Extrusion Machine with Triangle Device
| US$7,500.00-9,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SL-45-600
Raw Material
PE
Maximum Folding Width of Film
550mm
Screw Diameter
45mm
Automation
Non-Automatic
Computerized
Non-Computerized
Machine Weight
Set
Material
HDPE LDPE LLDPE
Blowing Film Width:100-550mm
Main Motor Adopts Inverter to Control Speed
Film Width Range
100-550mm
Output
10-40kgs/H
Transport Package
Plastic Film
Specification
4800*2000* 3800mm
Trademark
Honghua
Origin
Jiangyin, Jiangsu, China
HS Code
84773000
Production Capacity
30sets/Month
Product Description

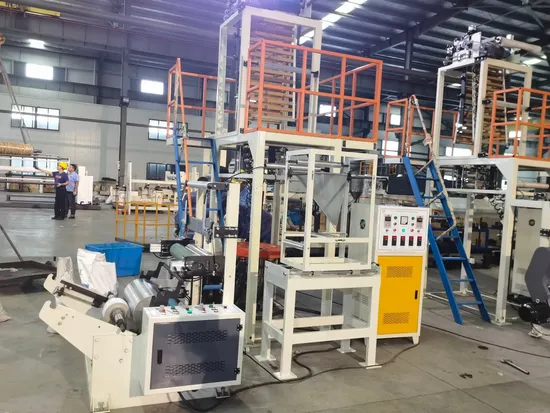

SL-45-600 film extrusion machine with triangle deviceMain feature and purpose:
The machine is special to blow film, such as HDPE, LDPE, dissoluble plastic and reproducible plastic. And equipped with edge folding device to blowing and processing the plastic bags. The forming frame can rise and down at random, this feature makes the operation easy and ensures good quality. The machine is compact structure, easy operation, less occupation of space, it is the ideal equipment to produce plastic film.
| MODEL: SL-45-600 HDPE Film blowing machine with triangle device for make garbage roller bag | |
| Feature | Specifications |
| Blowing material | HDPE/LDPE/LLDPE/ dissoluble plastic/ reproducible plastic |
| Film width | 100-550mm |
| Film thickness(single layer) | 0.001-0.05mm |
| Extrusion Output | 10-40Kg/h |
| Temperature controller | Intelligent temperature controller, CHINA brand |
| Contactor/ Short circuit overload protector | DELIXI |
| Inverter motor | INVT |
| W orkpiece | All w orkpiece surface with painting or chrome plated processing |
| Main motor | Use inverter control the speed |
| Guide roller | 55× 600mm, all with Oxidation treatment; SHANGHAI |
| Total Power | 380V, 26KW |
| Machine weight | 2000KG |
| Overall Dimensions | 4800× 2000× 3800mm |
| Extruder | |
| Screw diameter | 45mm |
| Screw ratio (L/D) | 30: 1 |
| Screw and Barrel Material | 38CrMoAl, hardening and tempering, deal with Nitride |
| Heater | by electricity (5 temp control zone 4 fan cooling) |
| die type | General die |
| Die material | Material of 45steel forgings. The cavity wall, punch hard chromium plating surface are polishing treatment and electronic polishing treatment |
| Reduction Gearbox | High speed hard tooth surface, KEWEI brand |
| Extrusion motor | 11KW, SIMENS Beide Motor |
| Take-up Tower | |
| Cylinder Of Roller Width | 600mm |
| Effective Roller Width | 550mm |
| Take-Up Control | Motor and Inverter control |
| Rewinding | |
| Rewind | Single rewind roller |
| Winder Controlling | By friction, inverter motor |
| Max rewind diameter | 600mm |
