China Factory CNC Router A4-1530-L8-PRO Atc Woodworking Engraving with Atc Spindle for Wood Door Engraving and Cutting
Basic Info.
Model NO.
A4-1325-L8-Pro/A4-1530-L8-Pro/A4-2030-L8-Pro
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Product Name
Atc CNC Router
Key Selling Points
Automatic
Working Table
Vacuum Table with T-Slot
Working Area
1500*3000*300mm
Spindle Power
9 Kw Air Cooling Spindle
Vacuum Pump
7.5 Kw
Max. Moving Speed
45000mm/Min
Max. Working Speed
30000mm/Min
Rails and Racks
25mm Guide Rail & Helical Rack
Inventer
11 Kw
Control System
Syntec 60we
Motor
Servo Motor with Reducer
Dust Collector
3kw Double Bags
Working Accuracy
0.01mm
Reposition Accuracy
0.01mm
Transport Package
Wood Case Pakage
Specification
1300*2500mm
Trademark
SIGN
Origin
Jinan City, Shandong Province, China
Production Capacity
50 Set/Month
Product Description

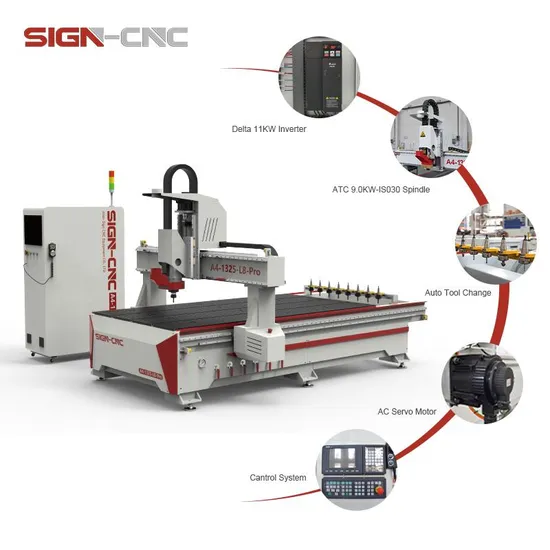

Product DescriptionChina factory CNC Router A4-1530-L8-Pro ATC woodworking machine with atc spindle for wood door engraving and cutting
Product Parameters
| Model | A4-1325-L8-Pro | A4-1530-L8-Pro |
| Working area | 1300*2500mm | 1500*3000mm |
| Z feeding | 300mm | |
| Frame structure | Steel casting-welding | |
| Type of table cover | Vacuum table with T-slot | |
| Vacuum pump | 7.5kw air cooling | |
| Z axis transmission | Ball screw and 25mm square guide rails | |
| X Y axis transmission | 25mm square guide rails + Helical rack | |
| Max. Rapid Travel Rate | 45000mm/min | |
| Max. Working Speed | 30000mm/min | |
| Command Code | G code * .u00 * .mmg * .plt | |
| Operating voltage | AC 380V/50Hz | |
| Spindle power | HQD 9.0 KW | |
| Tool Magazine | 8 - 12 pc tools | |
| Type of cooling | Air cooling | |
| Spindle Speeds | 0-24000rpm/min | |
| Drive motor type | AC servo motor and driver | |
| operating system | Syntec 60WE control system | |
| Dust Collector | 3kw with double bags | |
| Lubrication system | Automatic | |
| Supported software | Artcam with post processor | |
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | |
| Warranty | Two year | |
Application and Sample
Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box
Electrical industry: PVB circuit board, insulation material, LED display screen
Packaging & Shipping
Company Profile
FAQ
Q1:What about your after-sales service
A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
