Hot Melt Glue Coating Laminating equipment Butyl Rubber Tape Making Machine Adhesive Applicator

Product Description

Product Description

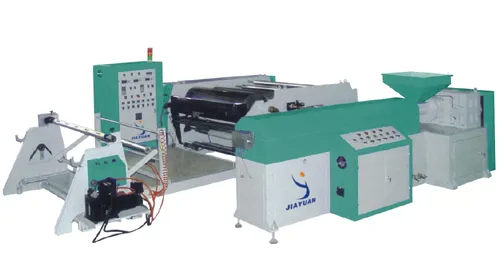

JYT-B the multi-funcation medical tape coating machine
1.The main machine speed and glue supply speed can be adjusted manually or tracked synchronously
2. Intelligent PID temperature control system, temperature error controlled at 1 ºC
3.All active rollers and passive rollers are adjusted by high-precision balanceable device
4.Reasonable installingtechnology makes sure the machine runs stably, low noise, laminating materials no- crinkling
5.High precision alloy die and high-precision metering gear pump ensure coating quality
6.Using a fiber spray system, it is possible to achieve the composite of PE film and nonwoven fabric, suitable for the composite of special filter materials, footwear and clothing materials, medical materials, etc. The fiber spray amount is small, uniform and delicate, with breathability
Uneven and thin coating, stable and reliable product quality, simple and durable equipment operation,and long service life Main characteristics.
1.Both the first and second unwind adopt self-existent machine frame, with automatic edge controller, which makes lamination moreideal.
2. Unwinds collocate electric-motor uploading and downloading functions.
3. This machine has all functions of JYT-B Roll to Roll Hot Melt Coating Machine Product Parameters

model	JYT-B
coating width	400-2000mm customized
coating weight	10-200g/m2
correction decicee	2sets
coating speed	50 m/min customized
length/hight	8500*2400mm
Unwind DIAMETER	1000mm customized

Main Description of JYT-B double side foam tape coating machine:JYT-B hot melt coating machine is suitable for producing double-side tapes, duct tapes, double-side sponge adhesive tape, clean adhesive tape, masking adhesive tape, Alu. Foil tapes, fabric tapes, shoes materials and medicine dressing tapes, etc.Main characteristic of JYT-B double side foam tape coating machine:1. An AC converter control is used for both speed and quantity of glue feeding for which both automatic synchronous tracking and manual control are available.2. JYT-B hot melt coating machine adopts intelligent PID temperature control system, it can control the temperature exactly and the tolerance is with in 1degree.3. The glue melting oven is coated with the antisticking layer, efficacious prevent the hot melt adhesive against carbonization.4. Collocate the precision metric gear, make it more steady to produce the adhesive.5. The high precision of alloy steel spray head has guaranteed high-quality coating result.
Detailed Photos
Machine structure diagram and host structure diagram
Hot-melt adhesive machine magnetic powder tension control rewinding process
Our Advantages
Main Description of JYT-B double side foam tape coating machine:JYT-B hot melt coating machine is suitable for producing double-side tapes, duct tapes, double-side sponge adhesive tape, clean adhesive tape, masking adhesive tape, Alu. Foil tapes, fabric tapes, shoes materials and medicine dressing tapes, etc.Main characteristic of JYT-B double side foam tape coating machine:1. An AC converter control is used for both speed and quantity of glue feeding for which both automatic synchronous tracking and manual control are available.2. JYT-B hot melt coating machine adopts intelligent PID temperature control system, it can control the temperature exactly and the tolerance is with in 1degree.3. The glue melting oven is coated with the antisticking layer, efficacious prevent the hot melt adhesive against carbonization.4. Collocate the precision metric gear, make it more steady to produce the adhesive.5. The high precision of alloy steel spray head has guaranteed high-quality coating result.Packaging & Shipping
Company Profile
About Us:
Ruian City Jiayuan Machinery Co., Ltd. is a high-tech enterprise specializing in hot melt equipment in China. Our main products are hot melt coating&laminating&extruding machine which is widely used in clothe material, adhesive tape, label, filter and etc. Our product range includes: JYT series hot melt equipment; JYJ series hot melt extruding coating machines; JYP series hot melt adhesive spraying machines; JMQ series die cutting machine; JFQ series slitting machine Air gun & infusing gum tubes. Hot melt equipment is widely used in the industries of paper carton package, shoe materials, cosmetics fill, furniture agglutination, bookbinding, dynamo agglutination, filter, auto inner-decoration, adhesive tape, garments materials, advertisement materials, medical dressing, label, nonwoven and electronics. Our products are highly appraised by customers from South Africa, Mid-Asia, Southeast Asia, Vietnam, Thailand, Sri Lanka, Pakistan, India, and Indonesia. Ruian City Jiayuan Machinery Co., Ltd. is in the possession of high standard management, technology and equipment, which enables us to provide good quality to customers from all over the world.
FAQ
1. who are we?We are based in Zhejiang, China, start from 2006,sell to Domestic Market(68.00%),Mid East(6.00%),South Asia(4.00%),South America(3.00%),Africa(3.00%),Eastern Europe(3.00%),Eastern Asia(2.00%),North America(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Southeast Asia(2.00%),Oceania(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Hot Melt Coating Machine; Medical Tape Production Line; Butyl Rubber Tape Production Line; Toe Puff Back Counter Production Line; Non Asphalt Waterproof Coiled Materials Production Line4. why should you buy from us not from other suppliers?null5. what services can we provide?Accepted Delivery Terms: FOB;Accepted Payment Currency:USD,EUR,CAD,AUD,GBP;Accepted Payment Type: T/T,L/C;Language Spoken:English,Chinese
