Top Brand 37m Truck Mounted Concrete Pump Truck Hb37V with Chassis

Product Description

Product Description

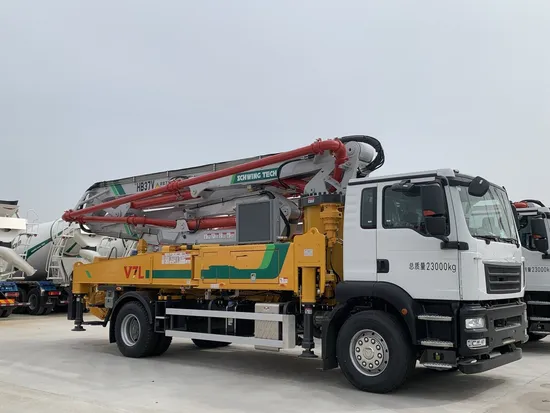

37M Concrete Pump Truck HB37V
V7 series truck mounted concrete pump is equipped with ultimately safe boom, lower structure of high rigidity, efficient pumping system of rock valve, hydraulic system of outstanding performance, intelligent control system and easy wear parts with super-long service life.1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-conditionloading make chassis structure deformation smaller and overall work stability higher.3. Based on laser guide, coaxial assembly makes piston head's moving track more precise, with smaller resistance and higher efficiency.4. SCHWING Germany's hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero pollution.
Advantages and highlights:1.Ultimately Safe Boom.2. Lower Structure of High Rigidity.3.Hydraulic System of Outstanding Performance.4.Effectively reduce emissions with the reversing, vulnerability of longer life.5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system. Product Parameters

Category	Item	Unit	HB37V
Overall	Outline dimension	mm	9900×2525×3750
	Overall weight	kg	23000
Chassis	Brand	/	Sinotruck
	Model	/	ZZ5231N521GE1
	Wheelbase	mm	5600
	Max.power	kW	225
	Emission standard	/	China V
Pumping system	Theoretical	m³/h	130
	Concrete pumping pressure	MPa	8
Placing boom	Reach height	m	36.2
	Reach depth	m	24.9
	Slewing radius		360
Others	Transfer	/	S valve
