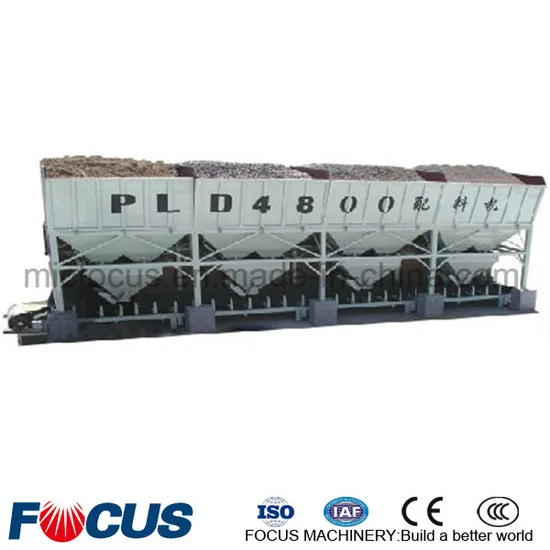

Aggregate Measuring System, PLD4800 Aggregate Batcher with Four Aggregate Bins
| US$30,000.00-35,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PLD4800 Aggregate Batcher
Machining Process
Aggregate Batching Machine
Structure
Rotor Type
Productivity
280m3/H
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
as Customer Need
Weighing Hopper Volume
4800L
Batching Aggregate Category
4
Storage Hopper Volume(M3)
4X25
Max. Weighing
8000 Kg
Batching Accuracy
2%
Discharge Door
Pneumatic Open
Loading Height
3m
Delivery Time
15 Days
Name
Aggregate Batcher PLD4800
Transport Package
Standard Packing for International Transport
Specification
Production capacity 280m3/h
Trademark
FOCUS
Origin
Zhengzhou, China
HS Code
84743100
Production Capacity
100 Sets Per Month
Product Description
Aggregate Measuring System, PLD4800 Aggregate Batcher with Four Aggregate BinsAdvantages of Focus aggregate batcher:
§ 3-6 kinds of aggregate precise dosing and batching;
§ Electronic weighing with computer control;
§ Fast and convenient operation
Why would our clients choose FOCUS aggregate batcher?
1. FOCUS PLD series concrete batching machine(aggregate batcher)is a kind of automatically batching equipment which can automatically finish the batching procedures of 3-6 kinds (Second grade concrete) such as sand, stone, cement according to users design.
2. This machine is used together with concrete mixer.This serial aggregate batcher adopts electronic weighing, computer control, digital display, wired remote control operation, and have characteristic of accurate weighing, high precision batching, quick speed, strong control function and convenient operation.
After this serial concrete batching machine combines with relative concrete mixer, different types and specification combined concrete mixing station can be formed.
Parameters of FOCUS aggregate batcher:
| Model | Weighing hopper volume | Storage hopper volume(m3) | Production capacity (m3/h) | Batching accuracy(%) | Max. weighing (kg) | Batching aggregate category |
| PLD800 | 0.8 | 2×2 | 48 | ±2 | 1500 | 2 |
| PLD1200-3 | 1.2 | 4×2.2 | 60 | ±2 | 2000 | 4 |
| PLD1600-2 | 1.6 | 4×3.7 | 80 | ±2 | 3000 | 4 |
| PLD2400 | 2.4 | 3×12 | 120 | ±2 | 4000 | 3 |
| PLD3200 | 3.2 | 3×20 | 160 | ±2 | 5000 | 3 |
| PLD3200-4 | 3.2 | 4×20 | 160 | ±2 | 5000 | 4 |
| PLD4800 | 4.8 | 4×25 | 280 | ±2 | 8000 | 4 |
Thanks for visiting, by the time you are paying attention to us, our aggregate batchers are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visit us @ micfocus.en.made-in-china.com
