Steel Structure CNC Drilling Sawing Machine Steel Structure Construction U Channel Beam Hydraulic Drilling Machine

Product Description

Steel Structure Construction U Channel Beam Hydraulic Drilling Machine 150mm*75mm-1250mm*600mm
Product Description:

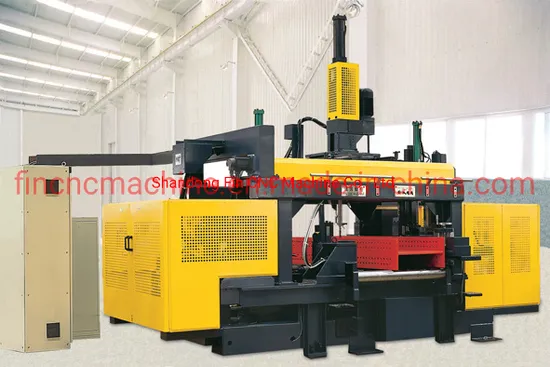

SWZ1250C CNC high speed drilling machine for H-beams&Channel-beams.
Applicable Industry:
SWZ1250C can be widely used in building, bridges and other industry fields.
Main Technical Specifications:

Parameter name					Unit	Parameter value	Remark
Scope of work piece	Section steel				mm	150x75~1250x600
	Thickness				mm	≤80
	Length				m	15m	Configure according to customer demand
	Short material limit				mm	Automatic processing≥3000
						Manual processing:690~3000
principal axis	Quantity					3
	drill hole Range		Fixed side, mobile side		mm	¢12~¢26.5
			Intermediate unit		mm	¢12~¢33.5
	Spindle speed				r/min	180~560
	Change the card head quickly				/	Morse taper hole 3#,,4#	Can change to 2#
	Axial stroke		Fixed side, mobile side		mm	140
			Intermediate unit		mm	240
	Axial feed rate				mm/min	20~300
	Moving distance	Each spindle is in the direction of workpiece length			mm	520
		Both sides of the spindle in the up and down direction			mm	35~570	From the lower plane of the workpiece
		The intermediate unit is in the direction of workpiece width			mm	45~1160	From the datum side
Cooling mode	Compressed air + cutting fluid				/	/
	Air pressure				MPa	≥0.5
Machining accuracy	Error of adjacent hole spacing in hole group				mm	≤0.5
	Feeding error within 10 m length				mm	≤1
	Fuel tank capacity				L	50
	Precision	Distance error of adjacent holes in hole group			mm	≤±0.5
					Accuracy of adjacent feeding distance within 10 meters
Electric machinery power	Three phase asynchronous motor for spindle rotation				kW	4x3	Number of spindles 3
	Intermediate unit X-axis servo motor				kW	0.85
	Z-axis servo motor of intermediate unit				kW	1.3
	Fixed side and mobile side X-axis servo motor				kW	0.85x2
	Fixed side and mobile side Y-axis servo motor				kW	1.3x2
	Moving carriage three phase asynchronous motor				kW	0.55
	Over dimension				mm	About 4800×2400×3300
Weight					kg	About 7000

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
Random accessories list:

NO.	Code	Name	Quantity	Remark
1	KHQ50.1-6No3	Extension rod (Mo's 3)	3	Full length of 150 mm including on the main engine
2	KHQ50.1-6No4	Extension rod (Morse 4)	1	Full length of 150 mm including on the main engine
3	HZ24-9A	Bit extension (Morse 3)	1	Full length of 260mm including on the main engine
4	HZ24--10	Bit extension (Morse 3)	1	Full length of 380 mm including on the main engine
5	SWZ10.1-88	Wedge iron (Mo's 1)	1
6	PD16.0-25	Inclined iron (Mo's 3)	1
7	PD16.0-26	Inclined iron (Mo's 4)	1
8	Sd0320	Stepped seal ring 32	4
9	¢95	J-ring	2
10		Φ 20mm nylon rope	1	12m
11		Butter thruster	1
12		Pressure oil pot	1
13	QDX1.5-16-0.37	Single phase submersible pump	1
14	GB/T1187	Ф25mmWater delivery hose	1	3m
15	ZBJ51002-87	Hoop 40	1
16	JB/GQ0341-89	Coupling 8	1
17	ZBJ51002-87	Hoop 20	1
18		Pu tubeФ8	1	5m
19	PUT08	Tee joint	1
20	3#/2#	Variable diameter Morse taper sleeve	3
21	GB/T9877.1	Seal ring for rotating shaft60×80×10	2
22		Paint (with curing agent)	3	1 barrel shield color, 2 barrel main engine color
23	HDX-63X20Q	Filter element	1	Hydraulic parts
24		CD (including PC content)	1

List of the Key Outsourced Components

NO.	Name	Brand	Country
1	Linear guide rail	HIWIN/CSK	Taiwan (China)
2	Electromagnetic hydraulic valve	ATOS/YUKEN	Italy/Japan
3	Hydraulic pump	Just mark	Taiwan (China)
4	Servo motor	Panasonics	Japan
5	Servo driver	Panasonics	Japan
6	PLC	MITSUBISHI	Japan
7	Spray cooling pump	BIJUR	USA
8	Flexible extension nozzle	BIJUR	USA
9	Pneumatic solenoid valve	AIRTAC	Taiwan (China)
10	Centralized lubrication	HERG/BIJUR	Japan/USA
11	Computer	Lenovo	China

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
Product Feature:
The bed is a frame structure welded by high-quality steel. The square steel pipe is strengthened in the place with large stress. After welding, the heat aging treatment is carried out to improve the stability of the bed There are 3 CNC slides table , 2 CNC axes on each slide. Each CNC axis is guided by precision linear rolling guide and driven by AC servo motor and ball screw. The holes on the same section of the workpiece can be processed at the same time, which greatly improves the positioning accuracy and efficiency of the holes in the hole group. Three automatic control stroke drilling power heads are respectively installed on three NC slide blocks for horizontal and vertical drilling. The three drilling power heads can work independently or simultaneously. The spindle speed of each drilling power head is controlled by frequency converter and stepless adjusted; the feed speed is stepless adjusted by speed regulating valve, which can be adjusted rapidly in a large range according to the material of workpiece and diameter of drilling hole. The workpiece is fixed by hydraulic clamping mechanism. The machine is equipped with the detection device of the width of the workpiece and the height of the web, which can automatically compensate the machining error caused by the irregular outline of the workpiece, and improve the machining accuracy. The machine tool is equipped with an aerosol cooling system, which has the advantages of less coolant consumption, cost saving and less bit wear. Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
