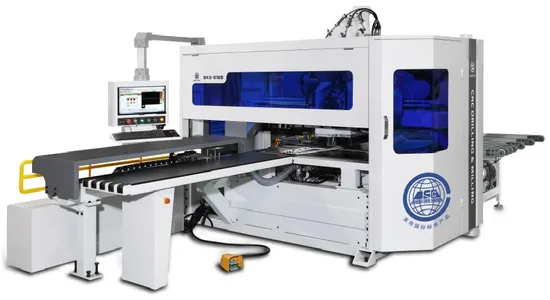

Woodworking Machine Horizontal Milling and Drilling

Product Description

Technical Specifications	SKD-6LM/ SKD-6LM2
Working Stroke & Max. Positioning Speed
X Axis	X1: 3800mm, 130m/min
	X2: 4500mm, 130m/min
Y Axis	Y1: 1690mm, 110m/min
	Y2: 1490mm, 110m/min
Z Axis	Z1 / Z2: 90mm, 60m/min
U Axis	U1: 1200mm, 90m/min
Up Drilling Unit
Drilling Chuck Quantity	1pcs
Vertical Spindle	(6X + 6Y) * 2
Horizontal Spindle	(2 left + 2 right + 2 front + 2 back)*2
Motor Power	2.2kw * 2. 4500rpm
Down Drilling Unit
Vertical Spindle	3*3
Motor Power	2.2kw. 4500rpm
Router
Router Quantity	2 up + 2 bottom
Router Type	Grooving & Round Milling
Tool Diameter	Φ6 -Φ12mm (Optional)
Tool Handle Diameter	1/2
Motor Power	3.5kw * 4. 24500rpm
Processing Size Range
Min. Width of Work-piece	35mm
Max. Width of Work-piece	1220mm
Min. Length of Work-piece	200mm
Max. Thickness of Work-piece	60mm
Others
Working Table Height	950mm
Total Power	29.5kw
Working Voltage	380V, 50HZ
Air Pressure	0.6-0.8Mpa
Overall Dimension	6550*3160*2200mm
Diameter of Suction Port	Φ200mm*1 , Φ125mm*1

Advantage: Patent designed drilling device with vertical & horizontal drilling spindles and grooving spindle. Adopts patent designed multiple sliding support base for drilling devices, which is able to reduce the vibration of drilling and grooving. Highly improve the processing performance. Designed with side milling and double vertical milling, application for Lamello, Invisible connector, Side hinge, sde milling etc. Adopts patent designed grooving device which is able to ensure the accurate depth and dimension of grooving on work-pieces. Patent designed roller type side baffle which is able to ensure the protection of the side surface of work-pieces during the high speed processing. Adopts Taiwan Delta servo motor, famous brands reducer, gears, rack and high strength linear guides and sliding carriage. Fully sealed oil lubrication system which ensures the perfection of dust proof. Adopts patent designed air floating clamp which is able to avoid the friction and wearing of the work-pieces during the high speed motion of clamping device. Adopts 17" display with computer WINDOWS system. Installing German BECKHOFF software for control. CAD drawing can be directly input to software for production. Data docking can be achieved between SANDAR CNC Drilling machines and various brands of design software. 1. About SANDAR
Guangdong SANDAR CNC Machinery Co., Ltd. founded in 1995. With more than 20 Years' experience on woodworking machinery industry, SANDAR has become one of the leading companies and most famous brand of woodworking machines in China.

2. About SANDAR CNC Drilling Machine
CNC drilling machine is the full automatic drilling equipment that can provide the complete solutions of synchronous 5-sides drilling for custom furniture manufacturing. Adopting GERMAN control system, machine can be connected with variety brands of production data software to input the production data directly. Highly raising the production efficiency and reducing the daily production costs for the factories.

3. SANDAR wood working machine series:
·SKL series - CNC labeling & processing centers
·SK series - CNC panel saws
·SW series - Sliding table saws
·SE series -Edge banding machines
·SKD series - CNC drilling machines
·DW series - Boring machines

4. Our Quality Control
· Strict control on the quality of every spare parts.
· QC department to monitor each step of production process by different tests and inspections.
· Machine should be tested by different common materials and make necessary adjustment before shipment. Photos or sampling videos will be sent to customers for confirmation.
5. Our Warranty
·Warranty period is 12 months since machine reaches to customer's factory.
·Within warranty period, any damage parts caused by machine quality problems can be exchanged for free. Exception: regular consumables (such as cutting tools) or the damage parts caused by man-made irregular operating.
·International Express cost should be paid by customers.
6. Our After-sale Service
· Offer life-time 24 hours online technical support for free. Communication can be achieved by ways of phone, e-mail, whatsapp, wechat, QQ, etc.
· Offer free training for operation & maintenance of equipment. Technicians can be sent to our factory to accept free trainings from professional engineer team.
· Engineers are available for installation, maintenance and training oversea. All expenses should be paid by customer including VISA, air tickets, accommodation, foods, traffics, translates and service fee.
7. SANDAR Factory
8. SANDAR Processing
9. SANDAR Showroom
10. SANDAR Trade Shows
11. FAQ
Why choose SANDAR? 22 years' experience for woodworking machinery industry. Professional sales & technical team at your service. SANDAR specialized in providing whole plant equipment, fabrication, design for customers. Obtains and patent-pending 21 national technical patents of invention, practical, appearance and so on . SANDAR has been entitled National High-Tech Enterprise & 7th Chairman Enterprise of Lunjiao Woodworking Machinery Chamber of Commerce. Owned different certificates such as CE, TUV, ISO9001, etc. Do you accept OEM orders? Yes, we can make OEM for the machines according to your requests. How is your quality? Quality: 100% brand new made in China, manufactured according to export. What is the payment term if I placed orders to you? Normally we will accept T/T or L/C. More details can be discussed case by case. What is your lead time? 25 to 35 days after received deposit. Special situation can be discussed case by case. Where is your factory or showroom? No.3 North Xingye Road, Beihai Industrial Park, Lunjiao Town, Shunde District, Foshan, Guangdong, P.R.China.
