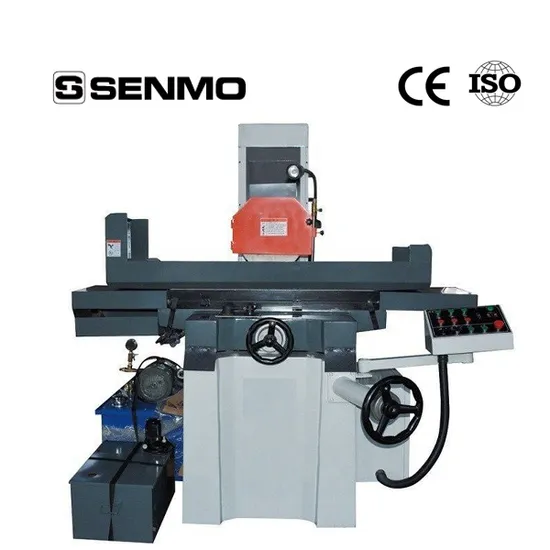

Senmo Grinder My1224 for Precision Metal Grinding
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
MY1224
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Table Size (Lxw)
600X300mm
Spindle Motor
2.2kw
Coolant Pump Motor
40W
Lifting Motor
120W
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84601910
Product Description
| Hydraulic Surface Grinding Machine |
| Specifications | MY1224 | MY1230 | |
| Table Size (LxW) | 600x300mm | 750x300mm | |
| Max movement of working table (LxW) | 630x320mm | 780x320mm | |
| T-Slot number×width | 1x14mm | 1x14mm | |
| Max distance from spindle center to table surface | 520mm | 520mm | |
| Wheel size (Outer diameter x Width x Inner diameter) | 300x30x76.2mm | 300x30x76.2mm | |
| Wheel speed | 50HZ | 1450r/min | 1450r/min |
| 60HZ | 1680r/min | 1680r/min | |
| Longitudinal speed of working table | 3-20m/min | 3-20m/min | |
| Vertical(up and down) feed on handwheel | Per revolution | 2mm | 2mm |
| Per graduation | 0.01mm | 0.01mm | |
| Speed of vertical feed | 360mm/min | 360mm/min | |
| Cross feed(front and rear) on handwheel | Per revolution | 4mm | 4mm |
| Per graduation | 0.02mm | 0.02mm | |
| Spindle motor | 2.2KW | 2.2KW | |
| Coolant pump motor | 40W | 40W | |
| Lifting motor | 120W | 120W | |
| Hydraulic motor | 2.2KW | 2.2KW | |
| Working pressure | 4Mpa | 4Mpa | |
| Oil tank capacity | 100L | 100L | |
| Max flow | 20L/min | 20L/min | |
| The parallelism of working surface to base level | 300:0.005mm | 300:0.005mm | |
| Surface roughness | Ra0.32μm | Ra0.32μm | |
| N.W./G.W. | 1400/1530kg | 1450/1550kg | |
| Packing size | 200x164x202cm | 200x164x202cm | |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
