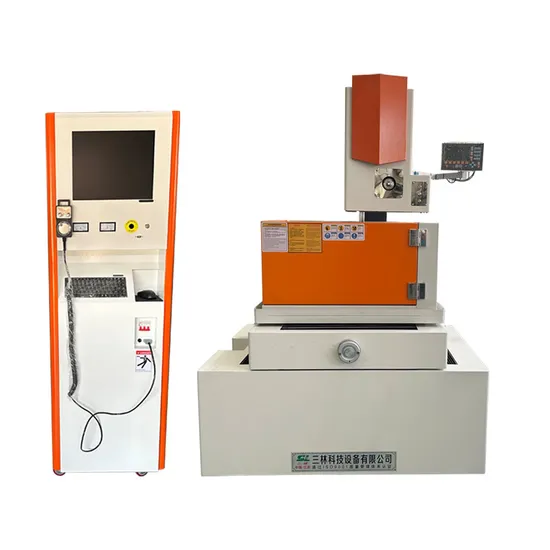

Efficient EDM Wire Cutting Machine with Warranty on Motor and Pump

Product Description

Product model	DK7720	DK7735	DK7745F	DK7745	DK7750
Worktable stroke (mm)	420*270	710*480	920*540	810*570	950*650
Table travel (mm)	200*250	350*450	450*700	450*550	500*630
Machining height (mm)	200	480	480	480	600
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	100	300	450	450	700
Main machine external dimensions (mm)	1160*810*1300	1240*1170*1400	1700*1600*1600	1600*1240*1400	1720*1680*1700

Product model	DK7750F	DK7763	DK7763F	DK7780	DK77100
Worktable stroke (mm)	1140*650	1140*750	1350*750	1350*985	1700*1170
Table travel (mm)	500*800	630*800	630*1000	800*1000	1000*1200
Machining height (mm)	400/600	600	600/800	600	1000
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	700	1000	1000	2000	2600
Main machine external dimensions (mm)	2000*1900*1700	2100*1940*1780	2300*2200*1800	2600*2400*1800	3000*2800*2500

Company Profile
Jiangsu Sanlin Technology Equipment Co., Ltd. Jiangsu Sanlin Technology Equipment Co., Ltd. stands proudly as a high-tech enterprise, seamlessly integrating production, research, development, and sales of cutting-edge CNC machinery and equipment. With decades of experience in the equipment industry, we have honed our craftsmanship to deliver excellence. Our main business portfolio includes: vertical machining centers, high-speed machines, gantry machining centers, drilling and tapping centers, engraving and milling machines, gantry engraving and milling machines, medium wire cutting machines, fast wire cutting machines, small hole machines, and sanding machines, among other sophisticated equipment. Our unwavering commitment to quality and meticulous attention to detail have garnered the trust and admiration of customers far and wide. Our versatile equipment serves pivotal industries, including automotive, aerospace, national defense, medical food machinery, rail transit, and metal mold production. Our products grace markets across the nation and have also made their mark in Southeast Asia, Europe, Africa, and beyond. Sanlin remains dedicated to continual improvement, striving to deliver exceptional products to our esteemed users. We warmly invite customers and friends to engage in fruitful collaborations!
FAQ
A: We are indeed the manufacturer and would be delighted to welcome you to tour our factory. A: When selecting a model, first align with the worktable travel and cutting thickness that suit your workpiece size; next, ensure that the precision and surface finish meet your expectations. (Our TRS series machines boast superior precision and enhanced finishes.) A: Absolutely, inform us of your required voltage and we will accommodate this change. A: We offer free replacement for any parts damaged within the warranty period and replacement at cost price thereafter. Should any issues arise, we are committed to providing prompt solutions through video assistance or other effective means.Q: Are you the manufacturer or a distributor? Q: How do I select the machine that best suits my needs? Q: Our country's voltage is three-phase 220V (or single phase 220V, or another voltage), but the machine's voltage is three-phase 380V, can you modify the voltage? Q: What kind of after-sales service can we expect?
