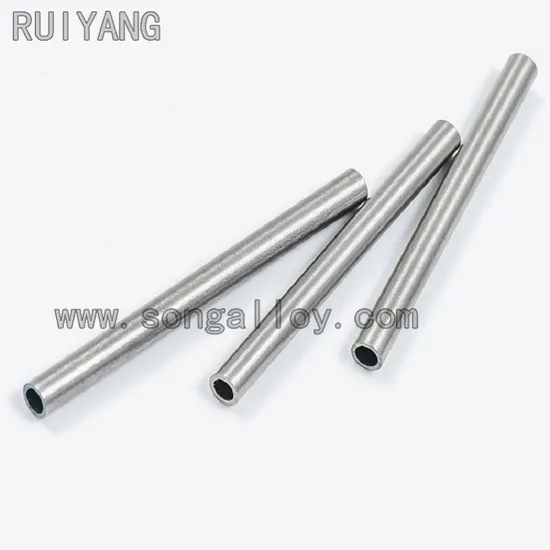

High Quality Heat Exchange Pipe Titanium Tube Titanium Welded Tube
| US$15.00-50.00 | 100 kg (MOQ) |
Basic Info.
Model NO.
Titanium pipe
Technique
Seamless
Grade
GR2
Shape
Round
Seamless
2-508mm
Welded
57-508mm
Transport Package
Wooden Box
Specification
2-508mm
Trademark
ruiyang
Origin
China
HS Code
81089040
Production Capacity
1000tons
Product Description
ASTM B338 Grade 2 Pure Titanium Tube and titanium alloy pipe for Heat Exchanger and Condenser| Product Name | ASTM B338 Grade 2 titanium tube for heat exchanger and condenser |
| Standard | ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928 |
| Material | Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc |
| Length | ≤15000mm |
| Size(mm) | Diameter 2-508 |
| Section shape | Round/ Square |
| Certification | ISO9001 |
| Surface Treatment | pickling, polished, bright finish etc. |
| Feature | 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity |
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Mechanical Properties:
| Material | Tensile strenght(MPa) | Yield strength (MPa) | Elongation(%) |
| Gr 1(CP1 Titanium,Low Oxygen) | >240 | >138 | >24 |
| Gr 2 (CP2 Titanium, standard Oxygen) | >345 | >275 | >20 |
| Gr 3(CP3 Titanium,Standard Oxygen) | >450 | >380 | >18 |
| Gr 7(Titanium,0.12-0.25%Pd) | >345 | >275 | >15 |
| Gr 9(Ti-3AI-2.5V) | >620 | >483 | >10 |
| Gr 11(Ti-Pd0.12-0.25%,Low Oxygen) | >240 | >138 | >24 |
| Gr 12(Ti-0.3%Mo-0.8%Ni) | >483 | >345 | >18 |
| Gr16(Ti+Pd0.04-0.08%,standard Oxygen) | >345 | >275 | >20 |
| Gr17 (Ti+Pd0.04-0.08%,Low Oxygen) | >240 | >138 | >24 |
Packing: in seaworthy wooden cases or in wooden box
MOQ:100KGS each size
Delivery date: Min. 10 days
Certificates: ISO9001:2000 quality system and Mill test Certificate supplied
Welcome to contact us for titanium and titanium alloy pipe tube seamless or welded type inquiry.
