1.5L Pet Bottle China Price Blow Molding Machine/Blow Moulding Machine

Product Description

1.5L 1 Cavity PET Cosmetic Bottle Blowing Mold Machine For Shampoo Bottle
1.High quality compact machine Most popular pet bottle blowing machineJS-1000 With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

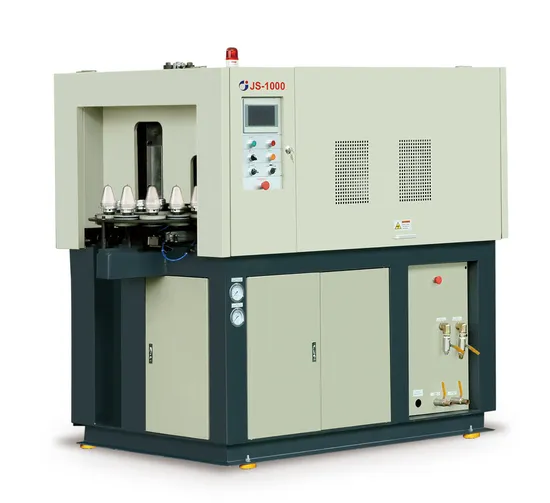

		JS-1000
Production capacity	BPH	1000-1200
Number of Cavity	/	1
Clamping force	kN	120
Mould opening stroke	mm	110
Stretch stroke	mm	350
Max. Container Volume	liters	1.5
Max. Neck Size	mm	50
Max. Bottle diameter	mm	95
Max. Bopttle height	mm	350
Installed Power	kW	17
Max. Heating Power	kW	16
Operating Air Pressure	Kg/cm²	8
Operating Air Consumption	liters/min	700
Blowing Air Pressure	KG/cm²	30
Blowing Air Consumption	liters/min	1000
Cooling water Pressure	Kg/cm²	4-5
Cooling water Temperature	°C	10-20
Cooling water Flow	liters/min	100
Measurement (L x W x H)	m
Weight	Ton	1.8

Internal details of the Machine
