Vertical Milling Machine X5750 Universal Metal Milling Machine ISO50

Product Description

Product Description
Versatile customizable vertical universal milling machine X5750
The main performance characteristics: *large work-table, long travel
*double-supporting-column design, heavy load capacity
*servo motor driven sliding ram, very long travel in Y-axis
*27 speeds spindle, gearbox driven directly, large speed range for powerful milling
*universal 360° swivel head can process any angle surface
*table feeding with 3 separate servo motors, variable speeds, high accuracy, low noise
*3-axis ball screws for precise feeding
*3-axis E-handwheels on control panel, easy manual control of work-table
Product Parameters

Specifications	Unit	X5746	X5750	X5750A
Table size	mm	460*1235	500*1600	500*2000
T-slots(NO./width/pitch)	mm	5*18*80
Table travel (X/Y/Z)	mm	900*650*450	1200*700*500	1400/700/500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	58-508	50-550
Distance from spindle center line to column	mm	20-670	28-728
Main motor power	Kw	5.5	7.5
Feed motor	Kw	AC servo motor X/Y:18NM; Z: 27NM
Max load	Kg	800	1800
Overall size	mm	2570*2035*1990	2625*2460*2080	2625*2860*2080
weight	kg	3600	4200	4500

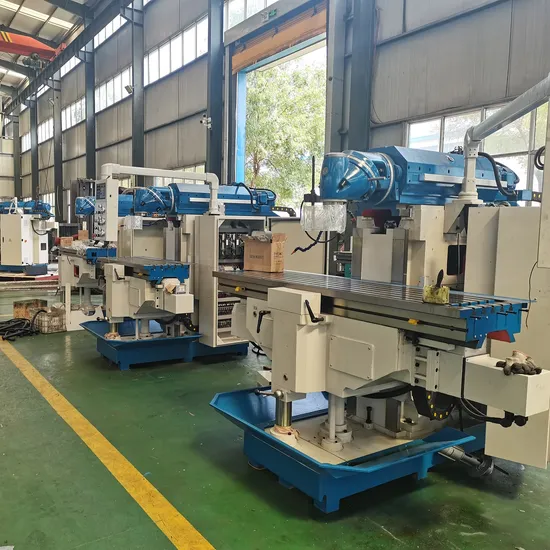

Detailed Photos
Optional Configuration
Certifications
Packaging & Shipping
Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 200 employees.Products include: Gantry machining center, VMC machining center, CNC lathe,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-type etc.) Among them, about 70% of the products will be exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets.
All products of the company have passed the international standard quality system certification ISO9001 and CE certification, please believe that we are a reliable supplier, you can fully trust our products, hope that we can establish long-term cooperation
Welcome visit our company Shandong XILI Machine Tool Co.,LTD./Tengzhou XILI Machine Tool Co.,LTD.
Address: Xingteng road, industrial area Tengzhou city, Shandong province, China.
Every year, we attend many exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
FAQ
1.What is the MOQ ? A.Our minimum order quantity is 1 set.
2. What are the main products of the company?
A. The main production of CNC machining center series (gantry, vertical, horizontal), turning and milling compound, milling machine series (CNC, lifting table, gantry, ram type) and other more than 80 varieties of specifications.
3. why should you buy from us not from other suppliers?
A. Our company has more than 20 years of experience in the field of machine tools. At the same time, with a professional R & D team, actively attract domestic and foreign advanced technology combined with independent research and development, continuous innovation. More than 140 patents have been authorized by the State Intellectual Property Office, including 14 invention patents.
4. How long is the guarantee ?
A. 12 month after machine's delivery from factory. Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. what services can we provide?
A. Accepted Delivery Terms: Usually is FOB, Others like CIF,CFR,EXW...... are also acceptable.
B. Accepted Payment Type: Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos, Other payment terms are also acceptable after discussion.
