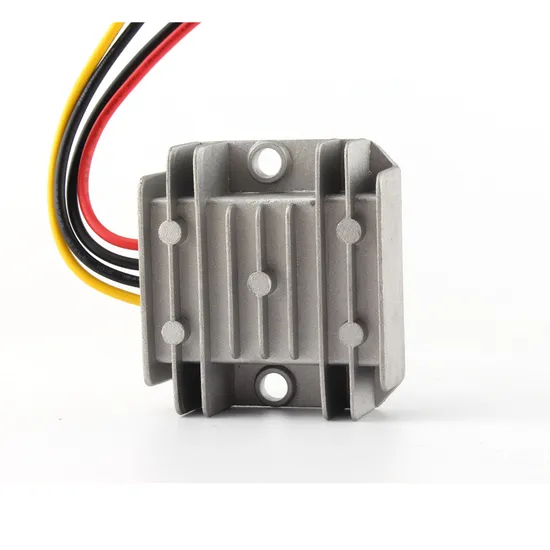

Non-Isolated Waterproof 48VDC to 13.8VDC 5A 69W DC-DC Buck Converter
Basic Info.
Model NO.
SDJ-48S13R805
Driving Method
LED Regulator Voltage
Certification
CE, RoHS
Power Supply Mode
Constant Voltage Source
In-Out
Step-down Type
Power Supply Voltage
48VDC
Brand
Smun
Output Rated Power
69W
Input Voltage Range
35-60VDC
Output Voltage
13.8V
Output Current
5A
Efficiency
up to 94%
Waterproof
IP68
Working Temperature
-40°c to +80°c
Warranty
1 Year
Weight
125g
Have in Stock
Yes
Transport Package
Carton Packed
Specification
57*64*22mm
Trademark
smun
Origin
China, Zhejiang
HS Code
8504401400
Production Capacity
50, 000 Per Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.200kg
Product Description
| DC48V to DC13.8V 5A Power Converters 69W | |
| Features | |
| 1. 100% full power & stable current output 2. 100% Imported components 3. Wide input voltage from 35-60Vdc 4. 100% waterproof & anti-shock protection, Ultra compact size, light weight 5. Industry grade DC48V to DC13.8V step-down converter, efficiency up to 94% 6. Certificates: CE 7. Waterproof level: IP68 8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection, 9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery when device is back to normal operating 10. Non-Isolated Module 11. 1 year warranty, lifetime up to 100,000 hours. | |
| Specifications | |
| Model | SDJ-48S13R805 |
| Input rated voltage | 48V DC |
| Input voltage range | 35-60V DC |
| Efficiency | 95% (half load) ; 94% (full load) |
| Output voltage | 13.8V DC |
| Output current | 5 Amps |
| Output rated power | 69 Watts |
| Output peak power | 125% |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP 68 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage |
| Machine size | 57*64*22mm |
| Package size | 89*72*30mm |
| N. Weight | 125g |
| W. Weight | 135g |
| Cooling way | Free air convection |
| Certifications | CE |
| Other | White box packing |
