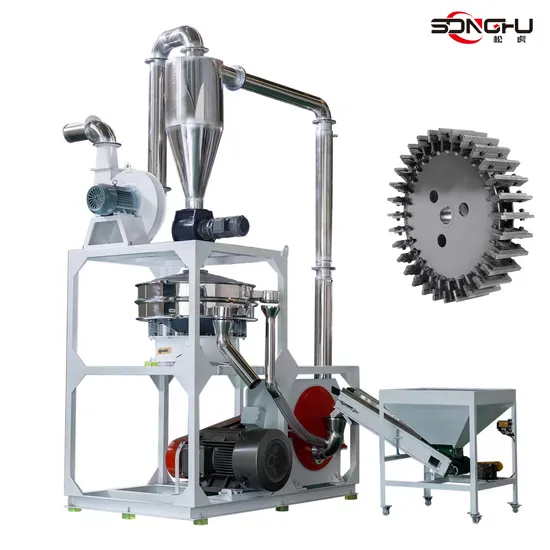

Custom-Sized High Speed PVC Grinding Machine

Product Description

Product Parameters

Mode	SHXR-500	SHXR-660	SHXR-800
Pulverizing chamber diameter	φ483 +1	φ583 +1	φ783 ±1
Main motor power (kw)	37/45	55/75/90	110/132
Rotary blade (pc)	24	28	36
Static blade (pc)	12	14	19
Type of cooling	water, forced air
Suction fan power (kW)	4/5.5	7.5/11	11/15
Off fan power (kW)	1.1/1.5/2.2	1.1/1.5/2.2	1.1/1.5/2.2
Vibration screen(mm)	ZDS-800/1000	ZDS-1200/1500	ZDS-1500
Output (kg)	200-550	450-850	750-1350
Weight (kg	1500	1800	2000
Size(mm)	1700*790	1800*790	1900*790

Technical Features
1. The new disc design is of high quality, with strong resistance, and its lifespan is twice that of ordinary discs.
2. The newly designed professional bearings have a high rotation rate. At the same time, using only one drive motor ensures efficient grinding, which greatly reduces machine operation time and engineering control.
3. Easy installation and maintenance; simply open the door to clean.
4. The entire milling process is sealed, preventing dust leakage.
5. Fully automatic design with automatic feeding, discharging, and sorting.
6. Grinding gap adjustment is simple; use a feeler gauge and adjust bolts for fine-tuning.
7. The mill uses a water and wind dual cooling system to prevent overheating of bearings and other parts.
8. Well-known brand accessories, such as bearings and Siemens motors, ensure long-term operation, saving the hassle of frequent replacements.
9. A wide range of optional accessories is available, allowing for professional solutions tailored to the customer's budget and processing requirements.
Application Areas
Company Profile
Wuxi Songhu Xinrui Machinery Co., Ltd. is a professional manufacturer of PE mills and PVC crusher equipment. We have an excellent R&D team and technicians, which lays the foundation for producing high-quality machines.
Established in 2007, Songhu Xinrui has been committed to providing the world with the best quality plastic PE grinding and PVC crushing machinery. With a top-notch team and the strictest manufacturing standards, Songhu Xinrui has become a leader in domestic plastic machinery manufacturing. Our products include PE grinding machines, PVC crushing machines, and other plastic recycling machinery, suitable for sheets, small pipes, plastic steel, resin tiles, wall panels, buckle plates, pipes, foam boards, footings, and many other materials. Songhu Xinrui's products have been exported to more than 50 countries and regions worldwide.
We offer a range of products to meet various needs. Since our company's establishment, we have adhered to the business policy of "Quality First, Customer First, Reputation-Based," and we believe that "the most suitable is the best." We are confident that quality products and reliable service can elevate your business to the next level. We are committed to continuous innovation and discovery to meet the diverse needs of our customers. In today's globalized economy, our company is eager to cooperate with enterprises worldwide to achieve mutual benefits and win-win situations.
