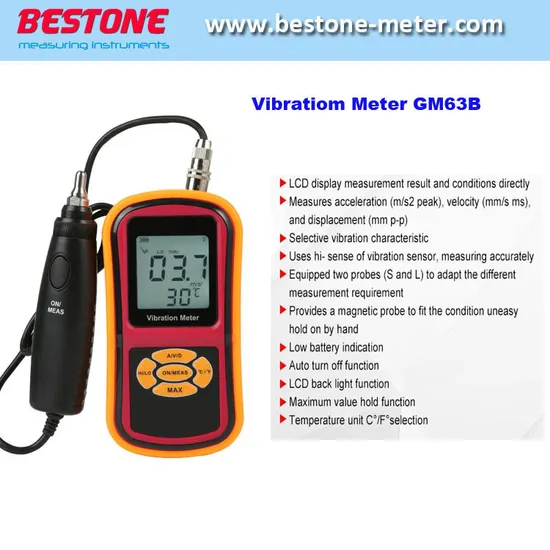

GM63b Portable Digital Vibration Analyzer Meter

Product Description

This Professional Vibration Meter adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery.
It measures Acceleration, Velocity and Displacement, in which widely used in mechanical manufacturing industry, electric power metallurgy and general aviation industry
Features :
* Simple to use, the structure is compact, portable for carrying with measurement
* Display measurement value and state instantly
* 3 measurements in one meter: Acceleration, Velocity and Displacement
* Different vibration frequency selection
* High sensitivity probe for accurate measurement
* Low power indication
* Auto Power-off
* LCD Backlight
* Max reading lock,temperature unit shift, environment condition display
Specifications:
* Vibration pickup: Piezoelectric ceramic accelerometer (shear-type)
* Measurement Range:
Acceleration: 0.1 ~ 199.9m/s2 peak
Velocity: 0.1 ~ 199.9 mm/s rms
Displacement: 0.001 ~ 1.9999mm p~p
(Velocity and displacement range is limited by acceleration 199.9m/s2)
* Accuracy: ±5% ±2digits
* Frequency Range
Acceleration: 10Hz ~ 1kHz (LO), 1kHz ~ 15kHz (HI)
Velocity: 10Hz ~ 1kHz (LO)
Displacement: 10Hz ~ 1kHz (LO)
* Displays update cycle: 1 second
* LCD display: 3½ digits display
* Max hold function
* Temperature selection
* Operation condition display
* Power Supply: 9V Alkaline Battery (included)
* Static current: ≤20µA
* Operating current: ≤20mA
* Battery Life: 20hrs. continuous use
* Auto Power-off: Turns off automatically in 60sec
* LCD Backlight: 7sec
* Operating Environment
Temperature: 0 ~ 40°C (32 ~ 104°F)
Humidity: 30 ~ 90% R.H.
* Low Battery Indication: 6.9V ±0.2V
* Size: approx. 80 x 38 x 150mm
* Packing method: Gift box + PP box
* Weight: 200g

Technical parameter		Technical specification
Vibration pickup		Piezoelectric ceramic accelerometer(shear-type)
Measurement range of acceleration		0.1~199.9m/s2peak
Measurement range of velocity		0.1~199.9mm/s rms
Measurement range of displacement		0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s2
Measurement accuracy		±5% ±digits
Measurement frequency range of acceleration		10Hz~1KHz(LO) 1KHz~15KHz(HI)
Measurement frequency range of velocity		10Hz~1KHZ (LO)
Measurement frequency ange of displacement		10Hz~1KHz (LO)
Displays update cycle		1 seconds
LCD display		3 1/2 digits display
Single output		AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones can be connected
Power supply		9V battery
Stand-by current		≤15μA
Operating current		≤25mA
Battery life		20H continuous use
Auto power-off function		Turns off automatically after 60 seconds
LCD backlight function		7 seconds
Operating temperature range		0~40C
Operating humidity range		30~90%RH
Low battery indication		6.4V±0.2V
Dimensions		72×35×145mm
Weight		229g (not including battery )
Temperature range		-10ºC~80ºC
Temperature accuracy		±2ºC
