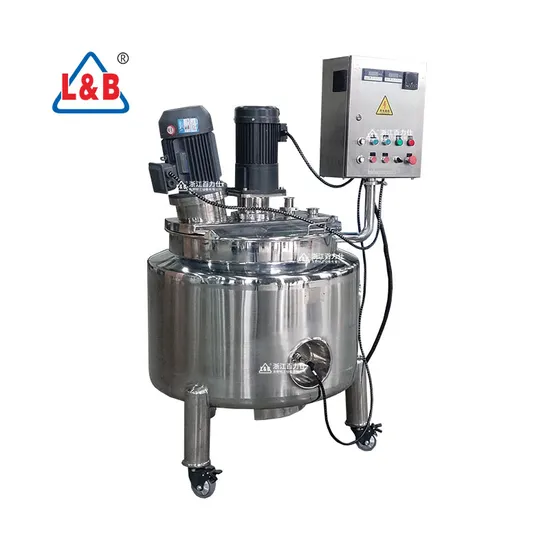

Stainless Steel Electric Heating Reactor Insdustrial Jacketed Equipment Homogenizer Juice Mixing Tank

Product Description

Product Description
stainless steel Electric Heating reactor insdustrial Double Jacketed equipment homogenizer Juice Mixing Tank
Usage:
It is widely used in dairy industry, food industry, pharmacy, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, anti-corrosive, strong production capacity, Cooling, insulation, sterilization treatment or storage of slurry must be stainless steel cans, especially for pasteurization of milk and insulation, ice cream production line is the necessary equipment.
Structure:
The equipment liquid storage containers, by the reducer, stirring paddle and the material valve, disc thermometer and other components.
1, the inner stainless steel plate SS304 or SS316L material, the surface mirror polishing.
2, the middle jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve the purpose of the best heating and cooling.
3, the external insulation group: the environmental polyurethane foam casting, maintaining the temperature difference with the outside, to the effect of insulation.
4, reducer: reducer output shaft connected with the stirring paddle, the use of Looper connection, easy disassembly cleaning.
5, additional devices: sterile respirator, sterile sampling port, manhole, import and export, thermometer, CIP cleaning balls
It can be customized according to special requirements of our customers. Total height is computed according to the height (800mm) of the discharge outlet. If the height of discharge outlet is changed, total height shall be adjusted.

Volume (L)	Dimension D*h (mm*mm)	Height (mm)	In/Outlet diameter (mm)	Heat preservation layer
1000	1060*1220	2550	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1930*2000	3550	51	60
7000	1930*2440	4000	51	60
8000	2060*2440	4000	51	60
9000	2180*2440	4050	51	60
10000	2300*2440	4050	51	60
12000	2270*3000	4600	51	60
15000	2530*3000	4700	51	60
20000	2640*3660	5400	51	60

More specification for reference:
Packaging & Shipping
Package and delivery
Company Profile
Our company
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our service

Please contact our After-sales service department in time within 30days after you received the cargo.
Process	Please provide the copy of Sales Contract and describe the problems appeared.
Problems confirmation:
Slight problem:	Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a	We will dispatch our Quality and Problems Appraisers to make a confirmation.
b	Have a negotiation of the compensation and sign agreements
c	Our After-Sales Department will perform the duties as the agreements
