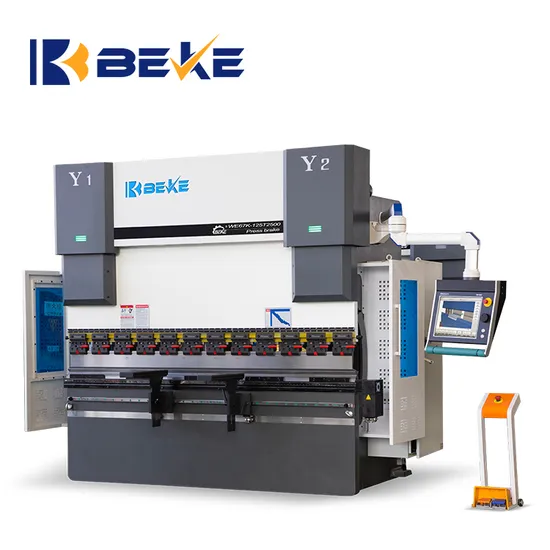

Beke Wholesale CNC 6+1 Axis Da66t Hydraulic Press Brake for Sale
Basic Info.
Warranty
3-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model No.
Da66t125t2500
Main Motor
Siemens
Servo Motor
Inovance
Hydraulic Valve
Bosch-Rexroth
Oil Pump
Rexroth
Transport Package
Wooden Box or Container Directly
Specification
5500*1750*2880mm
Trademark
BEKE
Origin
China
Product Description
Detailed PhotosProduct Description
Our company
Packaging & Shipping
customer
Parametric
| ITEM | VALUE |
| ITEM | VALUE |
| Model | WE67K 125T2500 6+1Axis |
| Pressure | 125ton |
| Max bending length | 2500mm |
| Column distance | 4300mm |
| Slide stroke | 320mm |
| Max opening height | 380mm |
| Throat depth | 400mm |
| Main motor power | 7.5kw |
| Machine size | 3000X1800X2500mm(LxWxH) |
| Weight | 6200kg |
| Axes | Y1 ,Y2, X, R, Z1, Z2 |
| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| DA66T Main Function: 3D visualisation in simulation and production 17″ high resolution colour TFT Full Windows application suite Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing User specific application support within the controllers multitasking environment Sensor bending & correction interface | |
