Gyxtc8y Outdoor Tranded Loose Tube Figure 8 Self-Supporting Aerial Optical Fibre 12 Core Fiber Optic Cable Gyxtc8y

Product Description

Product DescriptionGYXTC8Y:

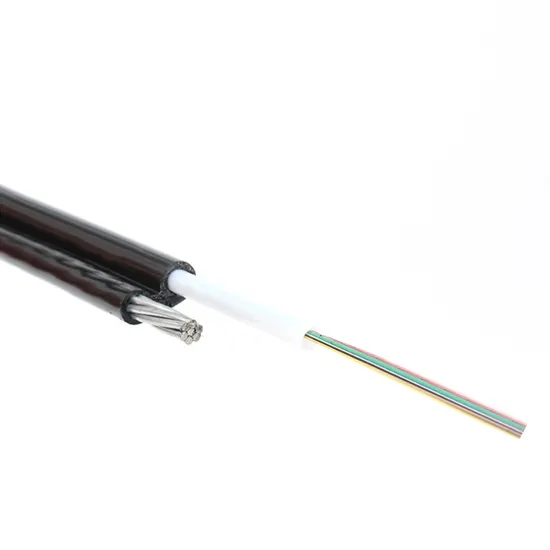

The fibers are positioned in loose tubes that are made of high-modulus plastic and filled with tube gel. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core.The core is filled with water-blocking compound and armored with corrugated steel tape(CST). Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer jacket is extruded.• Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
• Small size, light weight and soft, easy for installation
• Hydrolysis resistant loose tube
• Tube gel ensures critical protection of fiber
• Corrugated steel tape(CST) enhancing moisture-proof
Product Parameters

Fiber count	Cable diameter(mm)	Cable Weight(kg/km)	Allowable Tensile Load (N)	Allowable Crush resistance (N/100mm)	Dynamic and Static Bend (mm)	Installation Temperature Range(ºC)
2-36	9.5±0.2	83±10	1500/600	1800/800	20D/10D	-40~+70
38-72	10.5±0.2	100±10	1500/600	1800/800	20D/10D
74-96	11.5±0.2	125±10	2000/800	1800/800	20D/10D
98-120	13.1±0.2	152±10	2000/800	1800/800	20D/10D
122-144	14.6±0.2	210±10	2500/1000	1800/800	20D/10D

Optical Characteristics
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber
