Semi Automatic Stretch Blow Moulding Process for Pet Bottle

Product Description

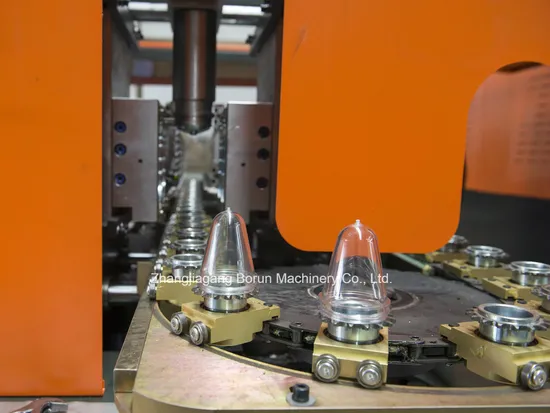

Semi Automatic Stretch Blow Moulding Process For PET Bottle This wide mouth plastic bottle blowing machine is widely used for big mouth bottle size of PET material, it is advanced technolgy designed, need one staff to put the preforms by manual. It is also used for Tritan material.

Main parts list

Name	Brand	Original
Cylinder	SMC	Japan
Magnetic valve(LP)	SMC	Japan
Magnetic valve(HP)	MAC	USA
Photoelectric switch	OMRON	JAPAN
Touch screen	MCGS	CHINA
PLC	Mitsubishi	Japan
Transducer	SMC	Japan
servo motor	HUICHUANG	CHINA

Spare part list(Free):

No.	NAME	QTY/SET
1	Lamp	10
2	Seal ring	10
3	Tool box	1
4	stop button	1
5	starting switch	1
6	connector	20
7	Detection switch	1
8	Magnetic switch	4
9	Pressure regulating table	1
10	Temperature control module	2

Technical parameter:

Item		BM-2L-2
Bottle type specification	Cavity	2
	Theory output	1500-2200
	Max.volume	2L
	Bottle mouth maximum overall diameter	80mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	0.75KW
	Maximum heating power	24KW
	All electric machine installation	27KW
	Actual consumption	7-9kg/cm2
	Blow bottle pressure	1000L/min
	Higher -pressure gas consumption	25-35kg/cm2
Forzen water specification	Work pressure	1500Ltr/min
	Temperature range	5-6 kg/cm2
	Consumption	10ºC
	Forzen water flow	5000kcal/hr
Machine specification	Size of the machine	30L/min
	Weight of the machine	3.5x1.6x1.7

Features:
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent.
