Spherical Lens Bk7/K9/Baf2/Mgf2/Sapphire Glass Lens Infrared

Product Description

Sunday Optics manufacture spherical lens, the minimum size can be 0.1mm, we are focus on high precision lens with Zygo test report, the flatness can be 1/20 lambda.We are manufacture plano convex lens, plano concave lens,bi convex lens, bi concave lens,achromatic lens.
Plano concave lenses are mainly used for infinite conjugate applications, laser applications, image systems. with the negative focal length, plano concave lenses have a flat face and an concave face.
Sunday is manufacturing plano concave lenses with glass, fused silica, infrared crystal, sapphire materials. with the advance testing machines Sunday can make high precision lenses for customers.

Structure	Plano concave lens
Material	Optical glass, UVFS,Germanium, Silicon,CaF2,MgF2,ZnSe ZnS,Sapphire
Diameters Available	0.1mm to 600mm
Diameter Tolerance	+0.00/-0.01mm or customer design
Surface Quality	10-5
Surface Irregularity	λ/20@632.8nm or customer design
Thickness tolerance	+0/-0.01mm
Clear Aperture	>90% of Diameter
Chamfer	0.05-0.5mmx45degree,according to customer's needs.
Centeration	3 arcmin
Coating	Single Mag2, Multiple Layers AR Coating A:350-650nm B:650-1050nm C:1050-1585nm D: Customer Design

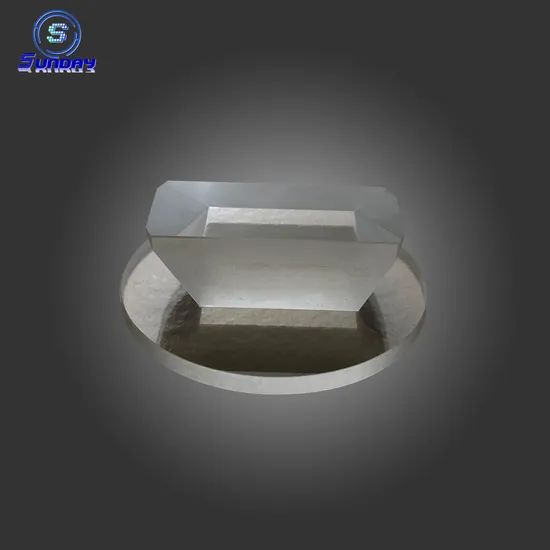

Lens Show
Our Factory
Testing
Exhibition Show
Sunday Optics attended Laser World in Laser World in Munich,Frankfult Exhibition,SPIE every year.
Related Production Line
sunday optics also manufacture high precison prism, powell lens, collimator lens, glass filter, and mirror.
FAQ:
1. Are you manufacturure? can we see your factory?
Yes.
2. Do you have test report?
Yes, we offer full size test report, about size, focal length, flatness, coating curve, coating plate.
3.What is your production quantity everymonth?
It depands on the lens size and precison.
4.What is the Minimum quantity?
1pc
5.What is your delivery time?
samples: 10-20days
6.How should we do if the quality is not good?
Repair or return money.
