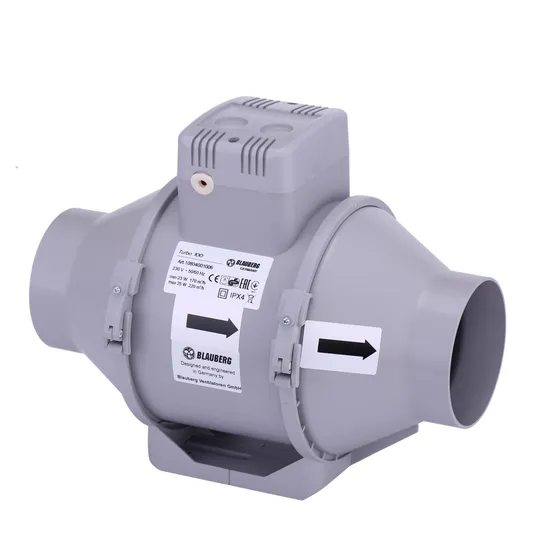

Excellent Airflow Mixed Flow Electrical Mixed Flow Duct Plastic Grow Tent Hydroponic Inline Air Ventilation Extractor Exhaust Duct Fan

Product Description

Parameters	Turbo 100		Turbo 125		Turbo 150/Turbo 160		Turbo 200		Turbo 250		Turbo 315
Speed	min	min	min	max	min	max	min	max	min	max	min	max
Voltage [V]	1~230	1~230	1~230	1~230	1~230	1~230	1~230	1~230	1~230	1~230	1~230	1~230
Frequency [Hz]	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Power [W]	23	25	25	29	42	50	76	108	125	177	227	315
Current [A]	0.10	0.11	0.11	0.13	0.19	0.22	0.34	0.48	0.54	0.79	0.99	1.42
Maximum air flow [m3/h(l/s)]	170(47)	230(64)	230(64)	345(96)	430(119)	560(156)	805(224)	1080(300)	1070(297)	1360(378)	1420(394)	1750(486)
RPM[min-1]	1980	1535	1535	2265	1940	2620	1915	2380	1955	2440	2115	2505
ound pressure level at 3 m [dBA]	27	29	29	34	32	44	39	45	44	51	41	52
Max. transported air temperature [ºC]	+60		+60		+60		+60		+60		+60
SEC class	C		B		B		B		-		-
IP rating	IPX4		IPX4		IPX4		IPX4		IPX4		IPX4
Motor IP rating	IPX4		IPX4		IPX4		IPX4		IPX4		IPX4
ErP	-		-		-		2018		2018		2018

Design
o The casing is made of low-flammable polypropylene.
o Ventilation unit with terminal box. Can be turned to any position.
o Special design of the casing permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct.
Motor
o Two-speed single-phase motor on ball bearings.
o Equipped with thermal overheating protection.
Speed control
o The control (minimum speed, maximum speed and shutdown) is executed with the integrated three-position switch (US modification) or with the
external switch for multi-speed fans (specially ordered accessory).
o Smooth speed control is possible with a built-in speed controller (FR1 modification) or an external thyristor speed controller (available upon separate order).
Mounting
o Due to the compact design the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
o The fan can be installed in any section of the ventilation system from intake to the end of the ductworks.
o Wall or ceiling mounting with a mounting plate.
o TD: mounting kit for installation of one diameter fans in parallel (for boosting capacity)
o TL: mounting kit for installation of one diameter fans in series (for boosting pressure).
Accessories
Modifications
o T: turn-off delay timer adjustable from 2 to 30 minutes.
o US: three-position speed switch.
o FR1: smooth speed controller adjustable from 0 to 100 % and power cable with mains plug.
o G1: speed controller, temperature controller with external temperature sensor (cable length 4 m), power cable with mains plug.
o GT1: speed controller, temperature controller with external temperature sensor (cable length 4 m), 5 min timer switch and power cable with mains plug.
o GI1: speed controller, temperature controller with integrated temperature sensor and power cable with mains plug.
o GTI1: speed controller, temperature controller with integrated temperature sensor, 5 min timer switch and power cable with mains plug.
o The G1 and GI1 modifications enable automatic speed control depending on indoor temperature. The optimal ventilation solution for premises requiring permanent temperature control as greenhouses, orangeries, etc.
o W1: power cable with mains plug.

Designation key
Series	Duct diameter [mm]	Modifications
Turbo	100;125;150;160; 200;250;315	T : turn-off delay timer adjustable from 2 to 30 minutes US : three-position speed switch FR1 : smooth speed controller adjustable from 0 to 100% and power cable with mains plug G1 : speed controller, temperature controller with external temperature sensor, power cable with mains plug GT1 : speed controller, temperature controller with external temperature sensor, 5 min timer switch and power cable with mains plug GI1 : speed controller, temperature controller with integrated temperature sensor and power cable mains plug GTI1 : speed controller, temperature controller with integrated temperature sensor, 5 min timer switch and power cable with mains plug W1 : power cable with mains plug

Overall dimensions [mm]
