CP6250L Tornos Horizontal Bench Turning Lathe Milling Grinding Drilling Cutting Machine

Product Description

Advantage
1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P.;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. With through-hole spindle bore which can hold bar stocks in larger diameters;
6. Both Inch and Metric systems are available;

Specification	Unit	CP6250L
Swing over bed	mm	500
Swing over cross slide	mm	300
Distance between centers	mm	1000,1500,2000,3000
Swing in gap	mm	710
Width of gap	mm	240
Width of bed	mm	390
Spindle nose		D8
Spindle bore diameter	mm	105
Morse taper of spindle center		1:20
Spindle speed	rpm	6-1120 (24 steps)
Max output torque of spindle	N.m	1500
Range of longitudinal feed	mm/rev	0.063-6.43 (0.0025-0.25in/rev)
Range of cross feed	mm/rev	0.027-2.73 (0.00106-0.107in/rev)
Lead screw pitch		12mm(metric system)/2 t.p.i(inch system)
Metric threads	mm	1-224 (46 kinds)
Inch system threads	t.p.i	28-1/8 (42 kinds)
Module threads		0.5-112mm (42 kinds)
Diameter pitch threads		56-1/4DP (45 kinds)
Cross slide travel	mm	340
Top slide travel	mm	150
Section specification of tool post	mm	25×25
Longitudinal rapid traveling speed	m/min	4.5 (50Hz) / 5.4 (60Hz)
Transversal rapid traveling speed	m/min	1.9 (50Hz) / 2.3 (60Hz)
Morse taper of tailstock center		M5
Max travel of tailstock quill	mm	150
Tailstock quill diameter	mm	75
Main motor	kw	11
Rapid travel motor		250W/1360rpm
Coolant pump motor		90W/25L/min
Hercules Machinery Equipment Ltd.

Standard Accessories:
1.Ø250mm 3-jaw chuck
2.Thread chasing dial
3. Chip guard for L≤2m lathe; Follow Chipe guard for L≥3m lathe
4.Footbrake
5.Oil gun
6.Live center 5#
7.Center 5#
8.Center sleeve
Optional Accessories:
1.Ø630mm Face plate for 50 series;
2.Ø400mm 4-jaw chuck
3.Ø20-140mm Small steady rest
4.Ø130-260mm Large steady rest
5.Ø20-80mm Follow rest
6.Ø250mm Drive plate
7.4-position stop for saddle
8.4-position stop for cross slide
9.Micro stop for saddle
10.Quick change tool post
11. Damping washer
12.Taper turning attachment(TTA)
13.Halogen work lamp
14.Digital readout(DRO)
15.CE standard compliance
16.Chuck cover

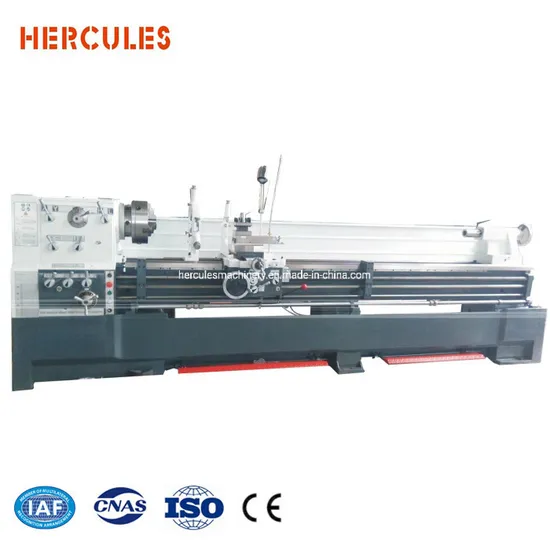

Pictures for reference only:
