New China Goose Feather Down Moncler Jacket Fast Filling Machine

Product Description

Product Description
·The automatic weighing and high-efficiency down filling machine is suitable for producing various styles of down jackets and down products. Widely used in warm winter clothes, down jackets, down pants, lightweight down jackets, goose down jackets, padded clothes, sleeping bags, pillows, cushions, duvets and other warm products.
·We provide down filling machines of various models and purposes, which are widely used in garment, home textile and toy processing industries. This equipment can be filled with 30/40/50/60/70/80/90 down, feather silk, ball yarn and polyester staple fiber. The machine adopts fully automatic computer intelligent control, accurate and stable, one machine with multiple functions. Support remote management and system upgrade, support multiple languages.
·Built-in weighing system, each filling nozzle is equipped with two to eight scales for cycle weighing filling, and up to four filling nozzles can be used at the same time. The filling accuracy is high, the speed is fast, and the error is less than 0.01g. All electrical components are of international famous brands, and the accessories standards conform to the "International Electrotechnical Standards" and the safety regulations of Australia, the European Union and North America.
·The components are highly standardized and generalized, and the maintenance is simple and convenient.

Model	KWS-688-1
Scope of application	Down jacket,quilt, outdoor sleeping mat
Machine material	SPCC carbon steel plate, sheet metal paint, H:1.5mm/2.0
Main box size(length,width and height) mm*1	1700*900*2230
Weight box(length,width and height)mm*1	1200*600*1000*1set
Working power supply	220V/50Hz
Total power(Kw)	2KW
Air compressor power(Kw)	7.5kw
Working pressure Mpa	0.6-0.8Mpa
Rechargeable material	20-90% duck down, goose down,fiber
Filling mouth (station)	1 nozzle(2Weighing Scales)
Cycle number	2 stations 4 scales independent memory cycle
Fill range	0.5-35g
Independent operating system	2 systems can be operated individually
Weight	550kg
Cotton box capacity	15-25kg

Model	KWS-688-2
Scope of application	Down jacket,quilt, outdoor sleeping mat
Machine material	SPCC carbon steel plate, sheet metal paint, H:1.5mm/2.0
Main box size(length,width and height) mm*1	1700*900*2230
Weight box(length,width and height)mm*1	1200*600*1000*2set
Working power supply	220V/50Hz
Total power(Kw)	2KW
Air compressor power(Kw)	11kw
Working pressure Mpa	0.6-0.8Mpa
Rechargeable material	20-90% duck down, goose down,fiber
Filling mouth (station)	2 nozzles(4Weighing Scales)
Cycle number	2 stations 4 scales independent memory cycle
Fill range	0.5-35g
Independent operating system	2 systems can be operated individually
Weight	640kg
Cotton box capacity	15-25kg

Model	KWS-688-2A
Scope of application	Down jacket,quilt, outdoor sleeping mat
Machine material	SPCC carbon steel plate, sheet metal paint, H:1.5mm/2.0
Main box size(length,width and height) mm*1	2275*900*2230mm
Weight box(length,width and height)mm*1	1800*580*1000mm*2set
Working power supply	220V/50Hz
Total power(Kw)	2KW
Air compressor power(Kw)	11kw
Working pressure Mpa	0.6-0.8Mpa
Rechargeable material	20-90% duck down, goose down,fiber
Filling mouth (station)	2 nozzles(4Weighing Scales)
Cycle number	2 stations 4 scales independent memory cycle
Fill range	0.5-35g
Independent operating system	2 systems can be operated individually
Weight	670kg
Cotton box capacity	25-45kg

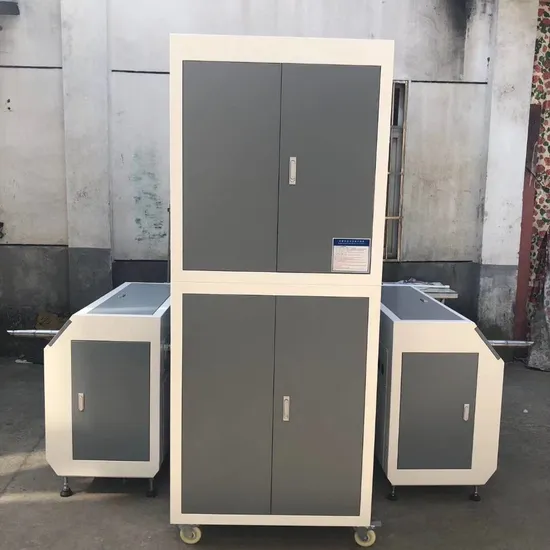

Product real shots

Application


Customer Feedback
Packaging & Shipping
FAQ
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4.When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
