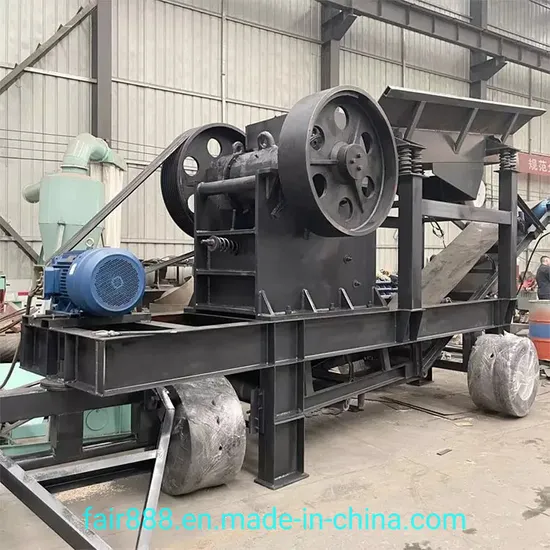

Reliable and Cheap Wheel Mounted Mobile Stone Marble Jaw Crusher for Sale

Product Description

Product Description
jaw crusher manufacturers mainly use rough and moderate broken operations of various ore materials whose compressive strength is not more than 320 MPa. This crusher has features of a high broken ratio, uniform product size, simple structure, reliable operation, convenient maintenance, low operating costs, etc,
Detailed Photos

Product Parameters

Model FM-JC	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Discharging Opening Size(mm)	Capacity (t/h)	Power (kW)	Overall Dimension (mm)
PE150x250	150x250	125	10-40	1-5	5.5	875x758x850
PE200x300	200x300	180	15-50	2-10	7.5	910x750x990
PE250x400	250x400	210	25-60	5-20	15	1450x1315x1296
PE400x600	400x600	350	40-100	15-65	30	1565x1732x1586
PE500x750	500x750	425	50-100	40-130	45	2150x1900x1950
PE600x900	600x900	500	60-125	90-180	55	2500x2010x2350
PE750x1060	750x1060	630	60-150	110-380	110	2630x2310x3110
PE900x1200	900x1200	750	95-165	220-450	132	3720x2850x3250
PE1000x1200	1000x1200	850	200-300	280-560	160	3820x2850x3250
PEX150x750	150x750	120	10-40	5-16	15	1310x1118x1145
PEX250x750	250x750	210	15-50	15-30	22	1440x1751x1515
PEX350x750	350x750	300	15-50	18-40	30	1485x1680x1648
PEX250x1000	250x1000	210	15-60	15-52	30	1730x1950x1400
PEX250x1200	250x1200	210	15-60	20-60	37	1730x2150x1400
PEX300x1300	300x1300	250	25-60	30-105	55	2000x2320x1730

Our Advantages
1. High crushing ratio, even particle size, low noise.
2. Strong adaptability to materials, and wide market.
3. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
4. Reliable quality can be guaranteed for many years without repair.
5. Good particle size, the crushing cavity, and jaw plate tooth have been designed specially.
6. It is well suited for running in very poor working environments.

Application
Now Depending on the application requirements, Jaw Crushers can be used in stationary, wheeled portable, and track-mounted locations. The Jaw Crusher is well suited for a variety of applications, including rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy, water conservancy, and the chemical industry.
Working Principles
Feeding: The material enters the crushing chamber through the feeding port and is crushed by the squeezing force between the jaw plate and the movable jaw plate. The jaw plate is fixed on the wall of the crushing chamber, while the movable jaw plate moves through the rotation of the eccentric shaft.
Extrusion crushing: The movable jaw plate causes the materials to be continuously broken, crushed, and ejected in the crushing cavity through the rotation of the eccentric shaft. The material is squeezed between the jaw plate and the movable jaw plate, generating huge pressure to break the material into smaller particles.
Discharge: The crushed materials are discharged through the discharge port. The size of the discharge port can be adjusted by the adjustment device to control the particle size of the finished product. During the crushing process, the hardness and strength of the material will affect the crushing effect. Harder and stronger materials require more force to break, while softer and brittle materials require less force to achieve crushing. Therefore, when selecting a jaw crusher, it is necessary to select suitable equipment based on the characteristics and processing requirements of the material.
Company Profile
Henan FAIR Machinery Co.Ltd Since 1997 it is located in Zhengzhou city China's transportation hub city.25 years of steady development is the root reason for our progress, Advocate is people-oriented!We FIAR Machinery have been a Top Manufacturer and Supplier of Powder Machine In China, Specializing In Dry mortar production lines, powder-making machines, crushing machines, and packing machines.
Our Company Invests Large Fund And Brains To Research Products To Fit The Demand Of The Market. A High-Level Research Group, Advanced Apparatus, And a Good Scientific Atmosphere Ensure Stable And Reliable Quality, Most Of Our Products Conform To The Requirements Of ISO, CE, and SGS.
Our products have been widely used in various industries, including construction industrial and dry mortar manufacture, road, mining, chemical industry, building materials, feed, powder mortar, metallurgy, environmental protection, and other fields., food industrial, etc., enjoying a good reputation among customers both in the overseas and domestic market. Such as Abroad, as in the USA, Canada, UK, Brazil, Germany, Sir Lanka, The Philippines, Malaysia, Russia, Australia, Greece, Netherlands, Ireland, Austria, Iran, Turkey, Sweden, Romania, Bulgaria, Poland, And So On.
Our Customers
Our factory


FAQ
What is the capacity of the jaw crusher?
Answer: The production capacity of the jaw crusher depends on many factors, including the hardness of the material, the feed particle size, the setting of the discharge port, etc. Jaw crushers have a wide range of production capacities, ranging from dozens of tons to thousands of tons per hour.
What issues should be paid attention to in the maintenance of jaw crusher?
Answer: The maintenance of the jaw crusher includes regular lubrication, inspection and replacement of worn parts, cleaning of the discharge port, etc. Attention should also be paid to operating precautions such as avoiding overload operation, preventing foreign matter from entering the crushing cavity, and avoiding long periods of no-load operation.
What is the power consumption of the jaw crusher?
Answer: The power consumption of a jaw crusher depends on factors such as the model, specifications, and working conditions of the crusher. The power consumption of the jaw crusher is relatively large. The larger the equipment, the higher the power consumption.
How to adjust the size of the discharge opening of the jaw crusher?
Answer: The size of the discharge port of the jaw crusher can be realized by adjusting the gap of the discharge port. Usually, the discharge granularity of materials can be changed by adjusting the gap between the movable jaw plate and the fixed jaw plate. Different devices may have different adjustment methods and specific operations should be performed according to the device's instructions.
What materials is the jaw crusher suitable for?
Answer: Jaw crusher is suitable for a variety of materials, including ore, limestone, sand, coal, construction waste, etc. However, factors such as hardness, moisture, and particle size requirements of different materials will affect the suitability of the crusher. When selecting a jaw crusher, the most suitable equipment model and specifications should be determined based on the characteristics of the material.
