4 Four Colors Paper Flexo Printing Machine

Product Description

CW-950 4 Four Colors Paper Flexo Printing MachineProduct Description

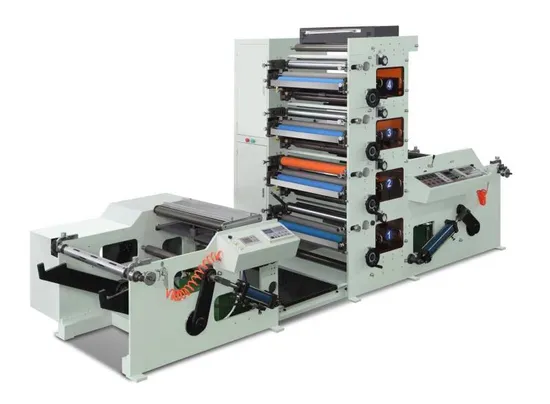

CW-950 Flexo printing machine independent unwinding and rewinding are used by hydraulic systems. Every print unit have one infrared dry. The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry. The main motor is adopted the import stepless regulation of frequency conversion. Unwinding, printing, varnishing, IR drying, and rewinding can be finished in one process. This kind of printing machine is best for each printing companies to print on adhesive-paper labels, PE coat paper, paper cup and others.
Product Parameters

Model	CW-950
Print speed	15~100m/min IR dryer
Print color	4 colors
Accuracy of registration	±0.15mm
Unwind width	950mm
Unwind diameter	1200mm
Rewind diameter	1200mm
Max print width	950mm
Print girth	175~380mm (60~100T)
voltage	3 phase ,380v
Main motor	5.0kw
Frequency converter	5.0kw
Total power	20kw
Total pressure	0.6mp
Weight	About 5300kg
Dimension	About 5.5mx2.4mx2.3m

ABOUT US
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.
