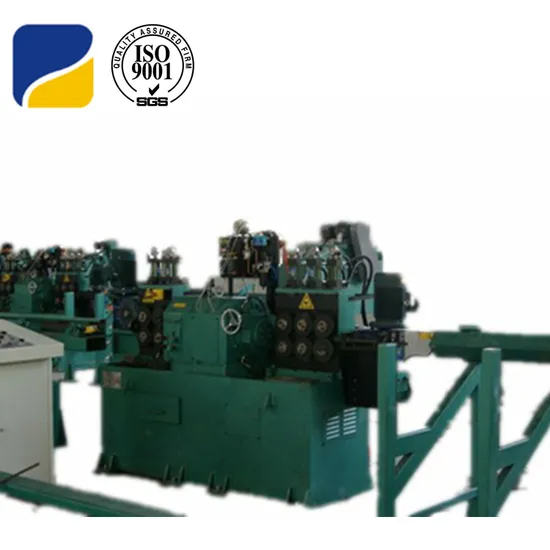

Steel Bar Peeling Centerless Machine Calow for Sale

Product Description

automatic lathe peeling machine
Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine's features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.
Our product is suitable for processing all kinds of metal materials, such as steel tubecore bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, quality carbon steel, alloy structural steel, nonhardening and tempering steel, free-cutting steel, valve steel, gear steel, mold steel and all kinds of nonferrous metal, pipe etc.

Technical Parameters
1.Input material
1.1 material: Titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, high-quality carbon steel, alloy structure steel, non-quenched and tempered steel, free cutting steel, gas valve steel, gear steel, mold steel and various non-ferrous metals, tubes and so on.
1.2 load bearing ≤5000Kg
1.3 size range & specification
Dia range: Φ31-Φ101
Dia tolerance: GB/T702-2017 Grade 2
Straightness: ≤1.50mm/m
Length range: 3.5M-12M
2. Output products
2.1 Dia range: Φ30-Φ100
2.2 dimension tolerance: ≤h9
2.3 surface roughness Ra; ≤3.2
3.Main parameters
3.1,Cutting depth: 0.35-2.0mm(unilateral)
3.2,cutting head rotation rate(2 gear variable frequency): 400-1200r/min
3.3,Feed rate(CVT ):3-12m/min(the rate need to be reduced when the material with larger or smaller diameter, continuous chip, high hardness,deep cutting depth,bigger straightness)
3.4,Main motor power: 110kW
3.5,Feed motor power: 7.5KW
3.6,Tool adjusting motor power: 3.5KW
3.7,Extracting trolley power: 4KW
3.8,Extracting out device power: 2.2KW
4.Energy consumption parameter
4.1,voltage: 3X380V±15V
4.2,Frequency: 50HZ±2%
4.3,Installed capacity(for reference): 140KW
4.4,air flow: 0.5m3/min
4.5,coolant flow: 170L/min
Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².There are one hundred and forty staffs working in the factory.The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Certification
Packaging & Shipping
FAQ 1.Are you manufacturer or trading company?
We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.
Besides,at the end of 2014,we was just estabilished a trading company.
2.How many employees are there in your factory?
Approximately 150 persons.
3.Do you have your own R&D team?How many design engineers do you have?
Yes,we have our own R&D team.More than 10 persons.
4.Which countries have your machines been exported to now?
Russia,South Korea,North Korea,Pakistan,India,Vietnam,Taiwan,etc.
We regard our customer's satisfaction as our unremitting pursuit.
