a-2000L Electronic Tension Device Specializing in The Production of Winding Machine

Product Description

Product Description
Product Details:
RM series electronic tensioner thin wire diameter. RM series electronic tensioner has two adjustable tension values, which can be switched arbitrarily through the external input signal, and can LCD display the current value, easy to adjust. Suitable for winding wire with diameter of 0.020.45mm.
Electronic type tensionerDigital display current valueSuitable for all kinds of automatic winding machine transformer motor inductance and other various coil processing industriesoTension stableHigh control precisionTo adapt to the high-speed windingHave much tension setting function


Product Parameters

Technical parameters of electronic tensioner for winding machine
Performance parameters of electronic tensioner for winding machine:

Input power supply	24V Dc±10% 10~300mA
Input signal	5~24V DC Max 2~8mA(tension switch)
Output signal	line break alarm switch signal
Operating environment	0~45ºC 40-80%RH

Type selection reference table:

Model	Tension Range (g)	Applied wire diamiter(mm)
A-30	3-30	φ0.02-φ0.06
A-100	10-100	φ0.04-φ0.14
A-200	20-200	φ0.06-φ0.17
A-300	30-350	φ0.10-φ0.25
A-600	60-600	φ0.12-φ0.35
A-1000	100-1000	φ0.15-φ0.45
A-1500L	100-1500	φ0.15-φ0.5
A-2000L	200-2000	φ0.18-φ0.65
A-5000L	500-5000	φ0.3-φ1.0

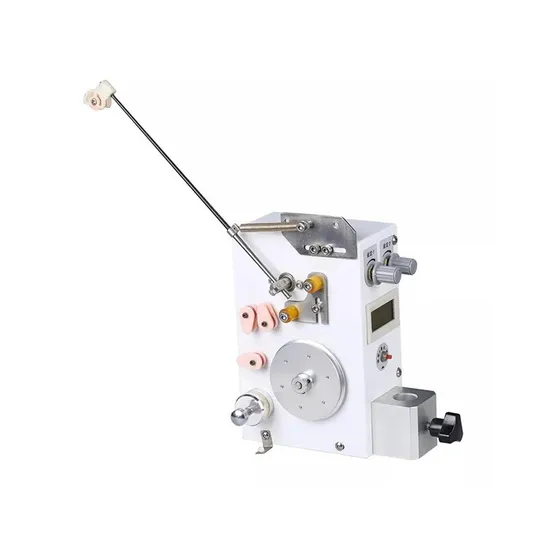

Detailed Photos


Magnetic electronics Tensioner is newly developed by Wodu
By intengrating the electronic system and non-contact breaking edsign. there is barely any contact in the core mechanism of the main tension wheel,except the connecting bearing. This combination provide smooth,stable and consistence tension provide smooth,stable and consistence tension,even in high speed winding. The non contact designs also reduce wear and tear of most of the critical components as to cut down maintenance cost.
All MET comes with "Auto Tension Fine Tuning System". By sensing the movement of the tension arm,the control system will fine tuning the tension automatically.
Control system are packed with in the body.
A series is solid and compact in design. It operates with DC24V electric power.
A series also comes with wire jump prevention and wire breakage detection.
Advantage of This coil winding tensioner Excellence for both high and normal speed winding. Consistence and precision tension to the wire Simple & Easy Adjustment Non wire breakage longer service life Packaging & Shipping
