Ca6150 Universal Metal Common Lathe with Gap Bed Turning Lathe

Ca6150 Universal Metal Common Lathe with Gap Bed Turning Lathe

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
CA6150
Guide Rail
Horizontal Guide Rail
Tool Holder
4
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
LWH 2550mm 1140mm 1750mm
Trademark
YZ
Origin
China
HS Code
8458110090
Production Capacity
777

Product Description

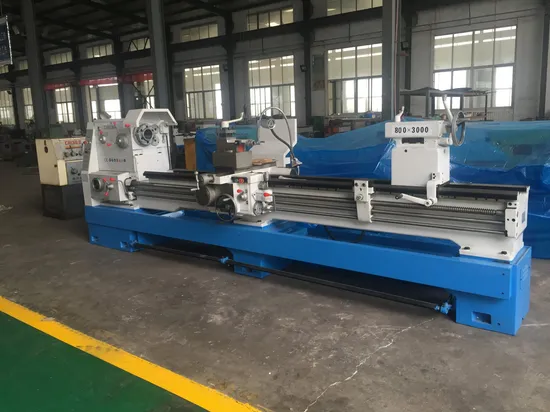

CA6150 Universal Metal Common Lathe With Gap Bed Turning Lathe
CA6150 CA6250 HORIZONTAL LATHE
Specification
Model		 CA6150 CA6250
Max. Swing over bed 500mm
Max. swing over carriage 300mm
Max.swing in gap -------- 720mm
Effective gap length -------- 210mm
Max.length of workpiece 750mm/1000mm/1500mm/2000mm/3000mm
Width of bed 400mm
ection of turning tool 25 x 25
Motor Power 7.5kw(10HP)

Spindle		 Spindle speed 10-1400rpm/16-1400rpm(24 steps)
Hole through spindle 52mm.(80mm).(105mm)
Spindle taper NO.6(MT6)( Φ90 1:20){ Φ113 1:20}

Feed		 Number of feeds 64kinds for each
Range of metric threads(kinds) (1-192mm) 44kinds
Range of inch threads(kinds) (2-24tpi)21kinds
Range of module threads(kinds) 0.25-48( Module 39 kinds)
Range of pitch threads(kinds) 1-96DP(37 kinds)

Tailstock		 Max. Tailstock travel 150mm
Tailstock spindle diameter 75mm
Taper of Tailstock NO.5 (MT5)
Packing Size 750mm/1000mm/1500mm/2000mm/3000mm 2550/2700/3200/3700/4850/x 1140 x 1750mm

weight		 Length G.W KGS N.W.KGS
750mm 2170 2060
1000mm 2260 2140
1500mm 2420 2290
2000mm 2790 2640
3000mm 3450 3300
