CE ISO Approved Waste PE Film Washing Line (PE500)
| US$50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PE500
Screw
PE Film Washing Line
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Capacity
100kg/H 300kg/H 500kg/H 800kg/H 1000kg/H
Metal Detector
Customizer
Raw Material
PP PE Film of Post Consumer and Industrial Packing
End Product
Clean and Small Film Pieces
Main Flow
Crushing Washing Drying
Main Motor
Huajin Made in China
Control Type
PLC or Micro
Electric Elements
ABB, Siemens, Schneider, Eura, Rkc, etc
Steel
Stainless Steel304
Workshop
30m*10m*6m
Transport Package
Plastic Film and Wood Box as Shipement Standards
Specification
CE
Trademark
Sevenstars pe film washing line
Origin
China(Mainland)
Production Capacity
100 Sets Per Year
Product Description
Energy saving germany tech pp pe film washing line1. Brief introduction
The whole pe film washing line equipment is researched, design and manufactured by our company, integration of Europe technology, it has features as high efficiency, working stable, low humidity content(less than 5%). We use good quality on our machine(SUS-304, more than 3mm thickness) ensures whole production equipment long service life time.

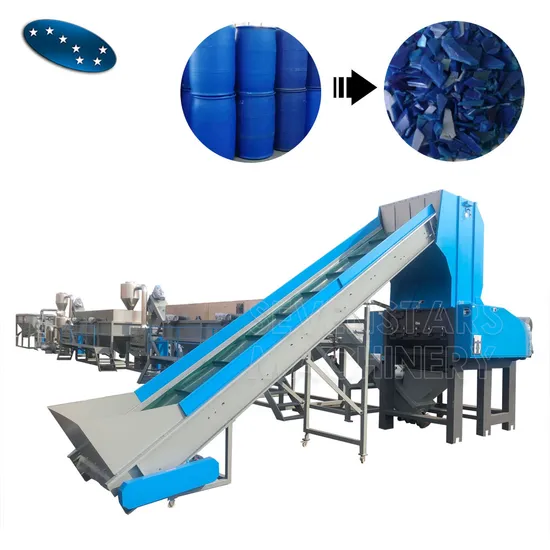

Function of each equipment: Belt conveyor:conveying or transporting dirty plastic films into crusher.If too much scrap iron,metal detector may be needed. Plastic crusher:cutting or shearing type:cutting jumbo film or bag into small pieces Screw feeder:feeding film pieces into the next step High speed friction washer:clean the dirty on the surface of film scraps Floating washer:clean the rest dirty on the surface of film scraps Dewatering machine:dewater for film scraps to get final good quality film scraps Hot air drying system and air blower:use hot air to remove the moisture from PP/PE scraps. Storage hopper:store the PP/PE scraps for next step packing. Control cabinet:elements:Schneider,ABB,Siemens,Danfoss,RKC, etc
| Energy saving pp pe film crushing and washing line | ||||||
| 1.Brief introduction | ||||||
| Working flow: 1.Belt conveyor→2.Plastic crusher→3.Screw feeder→4.friction washer→5.Screw feeder→6.Floating washer→7.Screw feeder→8.Dewatering machine→9.Hot air drying system→10.Storage hopper→11.Control cabinet | ||||||
| 2.Capacity of pp pe film washing line | ||||||
| PE film | 100kg/h | 300kg/h | 500kg/h | 800kg/h | 1000kg/h | |
| 3.Main machines of the pe film washing line | ||||||
| Name 300kg/h | Motor power(KW) | Dimension(MM) | Water consumption(T/H) | (mm) Stainless steel standard | SETS | |
| Belt conveyor | 1.5KW | 4000*600*2100mm | - | - | 1 | |
| Crusher | 37KW | 1800*1500*3000mm | 0.6-1.0 | - | 1 | |
| Screw charger | 1.5KW | 3300*420*1600mm | - | 3-5 | 1 | |
| Belt conveyor | 1.5KW | 4000*600*2100mm | - | - | 1 | |
| Crusher | 37KW | 1800*1500*3000mm | 0.6-1.0 | - | 1 | |
| Screw charger | 1.5KW | 3300*420*1600mm | - | 3-5 | 1 | |
| Floating washing tank | 2.2*2KW | 6000*1250*1700mm | 4-5 | 3-5 | 1 | |
| Screw charger | 1.5KW | 3000*420*1450mm | - | 3-5 | 1 | |
| High speed friction washing machine | 22KW | 3200*1200*1800mm | 1-2 | 3-5 | 1 | |
| Screw charger | 1.5KW | 3000*420*1460mm | - | 3-5 | 1 | |
| Dewatering machine | 45KW | 1750*1420*1770mm | - | 5 | 1 | |
| Drying system-1 | 28KW | 3700*1000*2000mm | - | 3-5 | 1 | |
| Storage for transition | - | 1200*1000*3000mm | - | - | 1 | |
| Drying system-2 | 28KW | 3700*1000*2000mm | - | 3-5 | 1 | |
| Storage hopper | 2.2KW | 3700*1500*3500mm | - | - | 1 | |
| Electric cabinet | - | 2000*450*1780mm | - | 1 | ||
| 4.Delivery | ||||||
| 60 working days since receiving advance payment | ||||||
| 4.Packing of pe film washing line | ||||||
| Film for main machines Wood box for key components Strictly fitted in containers as international sea shipment standards | ||||||
| 5.Warranty | ||||||
| 12 months | ||||||
| 6.Term of payment | ||||||
| 30% as advance payment by T/T after signing contract 70%as balance by T/T after inspection machine before delivery | ||||||
| 7.Notes | ||||||
| My friend,if you are interested in our pe film crushing and washing line Pls tell me: 1.What about the pollution degree of your film? Is it oily? 2.What is the capacity of one washing line you required? 3.Do you need the related machines or other machines? | ||||||
