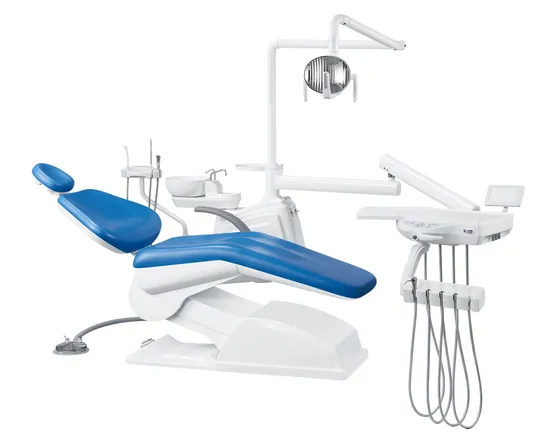

Foshan Guangdong China Cheap Price Full Set Complete Dental Chair Unit Dentist Chair Dental Treatment Chair

Product Description

Foshan guangdong china cheap price full set complete dental chair unit dentist chair dental treatment chair
Durable : Simple And Not Simple lntegrated Operation
Simple design appearance, comprehensive function and easy to operate, after repeated debugging to create a professional dental chair, so that doctors and patients more quickly adapt to the pace of treatment and environment, even in the long-term treatment, patients can still have a more relaxed and comfortable feeling.
Classic instrument tray, rotatable stand LED reflective orallamp multiple function selection, one key anti-curing, brightness adjustment, etc. Detachable sterilized ceramic spittoon with 180°rotation
Specification

Power voltage	AC220V±10V, 50Hz/60Hz
DC motor	24V
Air pressure	>0.55MPa
Water pressure	0.2MPa-0.4MPa
Illumination	≥12000Lux
Lighting power	≥2000FL
Ambient temperature	5ºC~40ºC
Relative humidity	≤80%RH
Atmospheric pressure	86kPa~106kPa
Body deflection	≤0.1°

SINOL Dental Chair
Setting Position
Dental clinic piping requirements
1.Water supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface (PPR Fusion Tube is recommended, 4 points internal and external tooth straight through valve)
2.Air supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface(PPR Fusion Tube is recommended, 4 points internal and external tooth straight through valve )
3.Drainage pipe: White PVC drain pipe, main pipe 17mm,branch pipe φ50mm.
4.VGA video screen and USB data cable: white PVC threading pipe φ 32mm, leaving a wire to be threaded in the future;
5.Negative pressure pipe: blue UPVC water supply pipe, outer pipe outer diameter φ50mm,branch pipe outer diameter φ 32mm, access to the outer diameter of the dental chair tube25 25mm.
6.Negative pressure signal line: white PVC threading tube, 4 points φ20mm) sleeve2*1mm2 line;
7.Power cord: white PVC threading tube, 4 points (φ 20mm) sleeve 3*1.5mm2 line; Note: Straight angle joints cannot be used at the drain and negative pressure pump connections, and 45 degree joints are used. The water purifier water supply and the air compressor inlet air must be reserved for the switch.
Our company reserves the right to make any improvement on product design without advance notice.
Packing&shipping:
Packaging: wooden case
Shippipng: by sea, air, Express
Certification:
CE & FDA & ISO
