Excellent Performance Movable Concrete Batching Plant of 75cbm/H

Product Description

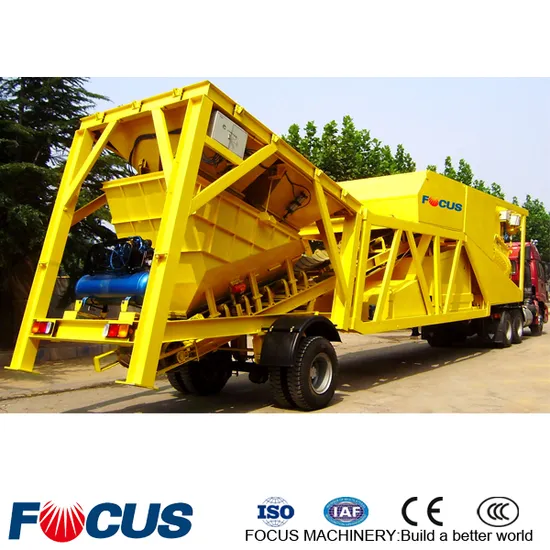

Excellent Performance Movable Concrete Batching Plant of 75Cbm/h
YHZS series mobile concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy, the electric power, the railroad, the road, the harbor-wharf and so on.
This series of mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It is a new type of movable cement mixing plant which can be dragged by a tractor to transferring work-site easily and quickly.
Without foundation and commissioning enables convenient movement and quick installation.
Installation Video of Mobile Concrete Batching Plant:
micfocus.en.made-in-china.com
Advantages of FOCUS Mobile Concrete Batching Plant:
1.Complete mobile unit, easily transported
2.Reliable and consist mixing performance,precise dosing...
3.High quality, good after-sale service
Sizes of Mobile Concrete Batching Plant:
YHZS25(25cbm/h) mini small mobile concrete batching plant,
YHZS35(35cbm/h) mini small mobile concrete batching plant,
YHZS50/60(50-60cbm/h) small mobile concrete batching plant,
YHZS75(75cbm/h) small mobile concrete batching plant
Why would our clients choose FOCUS mobile concrete batching plant?
1.FOCUS MACHINERY boasts an award-wining small mobile concrete batching plant product range with capacity from 25cbm to 75cbm hourly.
2.This series of small mobile concrete batching plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.
3.As uniquely and compactly designed it is, this small mobile concrete batching plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing.
The mobile concrete batching plant is the ideal concrete plant for projects that require frequent removal from one site to another.
FOCUS Mobile Concrete Batching Plant Technical Parameters:

Model		YHZS25	YHZS35	YHZS50/60	YHZS75
Output capacity		25m³/h	35m³/h	50-60m³/h	75m³/h
Overall power		40kw	60kw	85kw	105kw
Discharge height		3800mm
Max. hauling speed		40km/h
warranty		13months after commissioning
After-sale service		Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer		JS500	JS750	JS1000	JS1500
Motor power		18.5kw	30kw	18.5kw×2	30kw×2
Max. aggregate dia.		80mm
Aggregate batcher		PLD800	PLD1200	PLD1600	PLD2400
Aggregate weighing precision		±2%
Aggregate feeder		Belt conveyor
Other scale scope	Cement	±1%
	water	±1%
	additive	±1%
Control system		Auto computer control, 1 set
Pneumatic system		1 set

What are the main features of FOCUS mobile concrete batching plant?
1. It is composed of the systems of material supply, weighing, mixing and electric control;
2. Its discharge height is 3.8m, and it can mix various types of concrete;
3. With the loader to feed material, it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;
4. With electronic scales to measure and the mixing host is twin-horizontal-axis type;
Electrical system is equipped with IPC, printer and so on to realize the centralized control and overall management;
5. With the functions of real-time display, information storage and automatically equalizing the fall during the production process;
It can be controlled by computer and manually, and then can be easily converted through the switch;
6. The modular design is convenient for the containerized transport;
With the optimized design of the concrete batch plant, it can be overall transferred by the towing vehicle.
Thanks for visiting, by the time you are paying attention to us, our mobile concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.For more information please visit us @ micfocus.en.made-in-china.com
