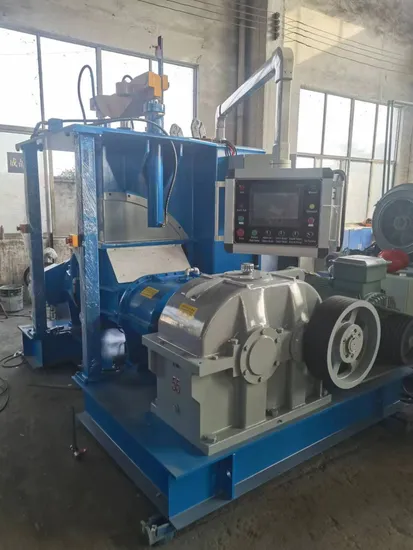

Rubber Kneader Machine with Complete Specifications

Product Description

Product Description Rubber Intensive Kneader/Rubber Internal Mixer/Rubber Intermix Machine/Rubber Internal Mixer/Dispersion Kneader :
1. This hydraulic rubber dispersion kneader machine has less noise than pneumatic dispersion kneader.
2. The pressure of the hydraulic rubber dispersion kneader is more balanced and stable working compared with the pneumatic type dispersion kneader,
which can effectively improve the dispersion effect of various mixture materials and enhance the quality of the rubber&plastic compound.
3. Hydraulic dispersion kneader is more powerful and well-distributed,works more efficiently, greatly improve productivity.
4.Hydraulic pressure ram, pressure on the compound is more stable compared with the pneumatic ram, hydraulic ram type makes the mixing more efficiently, it can save around 20%~30% mixing time per batch compared with the pneumatic ram kneader. So at the same time, it can also save 20%~30% electric power consumption cost, improve the production efficiency around 20%~30% higher.
Our hydraulic structure adopts double cylinders design, making it work more reliable and stable.
Product Parameters

Model		X(S)N-20-H	X(S)N-35-H	X(S)N-55-H	X(S)N-75-H	X(S)N-110-H	X(S)N-150-H
Effective Mixing capacity	L	20	35	55	75	110	150
Main power	KW	55	75	90	132	200	250
Brake Motor	KW	3	3	4	4	5.5	5.5
Tilting Angle	ºC	140	140	140	140	140	140
Hydraulic pump power	KW	5.5	5.5	7.5	7.5	7.5	7.5
Hydraulic pressure	Mpa	3~6	3~6	3~6	3~6	3~6	3~6
Cooling Water	Mpa	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater	KW	9	12	15	18	24	28
Machine Weight	KG	5800	7500	8800	11800	16500	22000
Overall Dimension	CM	260x160 x270	320x185 x280	350x220 X290	380x230 X330	440x290 X385	470x300 X415

Exhibition
Packaging & Shipping The rubber hydraulic kneader machines are packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.

Installation Instructions 1. Professional and quick response to your questions within 24 hours. 2. We will communicate with our production dept. and keep you updated about production progress in time. 3. Customized manufacture available for you. 4. Fast delievery to save your time. 5. Good after sale service will eliminate your worry. 6. Long guarantee period of the quality will reduce your cost and trouble. 7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
