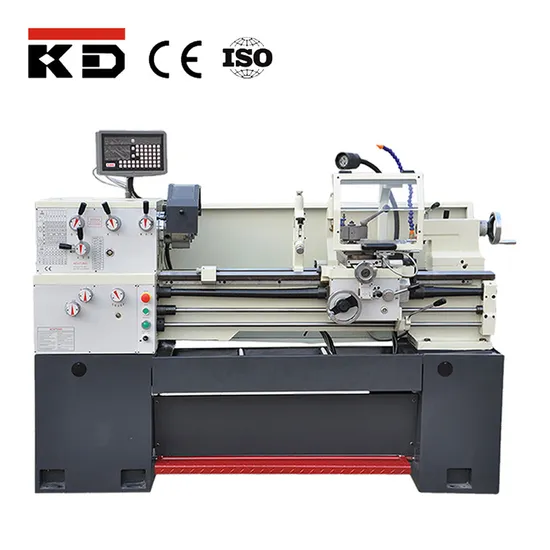

Cheap Brake Engine Horizontal Lathe Machine 1000mm
| US$4,438.00-4,850.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GH-1440K
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
356mm
Spindle Bore
40mm
Spindle Nose
D4
Spindle Speed
40-1800rpm
Transport Package
1990X760X1435
Specification
1900X710X1170mm
Trademark
kaida
Origin
Zhejiang
Production Capacity
1200/Year
Product Description
Cheap Brake Engine Horizontal Lathe Machine 1000mm Product FeaturesProduct Specifications
| MODELS | GH-1440K |
| CAPACITY | |
| Max.swing over bed | Ф356mm (14") |
| Max.swing over carriage | Ф210mm (8-1/5") |
| Max. swing over gap | Ф508mm (20") |
| Width of bed | 260mm (10-1/5") |
| Distance between centers | 1000(40") |
| SPINDLE | |
| Spindle bore | Ф40mm (1-1/2") |
| Taper bore of spindle | M.T.NO.5 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 40~1800rpm |
| Spindle nose | D4 |
| FEED | |
| Range of longitudinal feeds | 0.043-0.653 (0.0012″~0.0294″) |
| Range of cross feeds | 0.024-0.359 (0.0004″~0.0103″) |
| THREADING | |
| Metric threads | 0.4-7mm/ 37kinds |
| | 0.45-7.5mm/ 23kinds |
| Whit-worth threads | 4-56TPI/ 28kinds |
| | 4-112TPI/ 40kinds |
| LEADSCREW | |
| Diameter of leadscrew | Ф22mm (7/8") |
| Pitch threads of leadscrew | 4mm or 8TPI |
| TAILSTOCK | |
| Travel of tailstock quill | 120mm (4-3/4") |
| Diameter of tailstock quill | Ф45mm (1-25/32") |
| Taper bore of tailstock quill | M.T.NO.3 |
| POWER | |
| Power of main motor | 2.4kw(3HP) 3Ph |
| Coolant pump motor power | 0.04kw(0.055HP) |
| OTHERS | |
| Dimension(L×W×H) | 1900×710×1170mm |
| Net weight | 1250kg (2750lbs) |
| Gross weight | 1380kg (3040lbs) |
