Laboratory Planetary Mixer Measurement and Control Instrument

Product Description

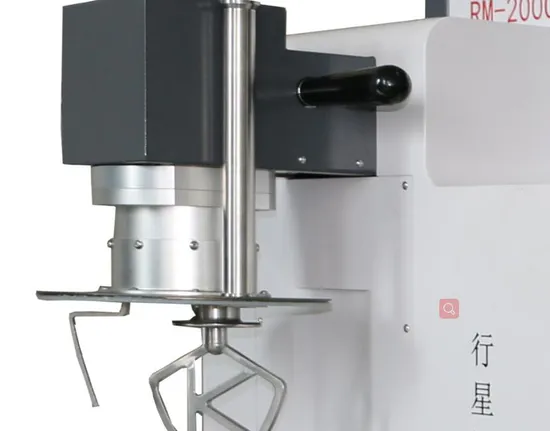

The multi-layer folding paddle in the tank of the planetary mixer rotates as well as rotates to make the material flow up and down and around, thus achieving mixing (mixing) effect in a very short time. The inner wall of the tank is finished by a large vertical car, and then automatically polished by a large polishing machine to ensure that the movable scraper on the planet frame is rotated, and the material on the inner wall of the tank is completely scraped off. This machine is especially suitable for powder to high viscosity, high density material dissolution, mixing, mixing, reaction process, according to different production process and material characteristics to choose different stirring paddle (such as: multi-blade type).
The unique temperature detection device on the drive shaft ensures that the temperature error of the material is less than ±1ºC. The jacket, the bottom jacket and the inner coil of the jacket and the guide plate can be cooled. The revolution and rotation of the mixing slurry in the tank are adjusted by frequency converter (frequency conversion motor), and different speeds can be selected according to different processes and different viscosity. The speed measuring system directly gives the speed of the different agitators. The planetary mixer is a kind of non-dead point mixing equipment. The movable scraper on the planetary frame and the scraper at the bottom of the stirring paddle constantly scrape off the material at the inner wall and bottom of the tank while stirring, so as to ensure the full mixing of the material. The mechanical seal of the transmission part and the soft seal between the upper and lower tanks make the material can be mixed under the vacuum condition, the vacuum degree is less than -0.096, so as to ensure that the material will not be foamed and remove the air composition in the material; The inner wall of the tank is processed by fine turning to ensure that the scraper can completely scrape off the material on the inner wall of the tank. There are two ways of heating and cooling the tank. The heating tank can be heated by electric heating, steam heating and oil-water heating cycle, customers can choose according to their needs. The kettle body is equipped with a temperature control device to ensure that the material temperature is no error; Using hydraulic pressure to go up and down. The planetary mixer is equipped with low speed stirring parts and high speed dispersing parts. The low speed mixing part adopts the planetary gear transmission, and the stirring paddle rotates when it revolves, so that the material moves up and down and around, so as to achieve the ideal mixing effect in a short time. The high speed dispersing part revolves together with the planetary frame and at the same time rotates at high speed, so that the material is subjected to strong shearing and dispersing mixing, and its effect is several times that of ordinary mixer. The dispersing parts are divided into single dispersing shaft and double dispersing shaft, customers can choose according to need; The speed of the low speed stirring paddle and the high speed dispersing head in the kettle are controlled by frequency conversion. Different speed can be selected according to different viscosity of different processes.
Scope of application of planetary mixer A, energy: all kinds of battery paste, paste (lithium battery, nickel chromium battery, nickel hydrogen battery, fuel cell, power battery, etc.); Two, electronic and electrical appliances: solder paste, ceramic paste, magnetic materials, silicone ink, electronic adhesive, PVC plastic, electronic and electrical parts sealing glue, hot melt glue, all kinds of precious metal powder, slurry; III. Chemicals: A variety of sealant, adhesive, silicone sealant, polysulfide sealant, structure of insulating glass sealant, waterproof sealant, sealant, anaerobic adhesive, stone glue, plastic mould, etc.), synthetic resin, rubber, printing ink, putty, abrasives (cream), wax products, synthetic rubber, synthetic resin, all kinds of powder materials, ceramic pigment; IV. Medical products: all kinds of soft ointment, polymer gel (medical stickers, children's antipyretic stickers, cold quick stickers, ice stickers, eye stickers), dental products; 5. Cosmetics and daily chemical products: moisturizer, lipstick, lotion, gel, mask, mascara, foundation, nail polish, toothpaste, soap. Six, food: all kinds of paste, paste type mixture, seasoning, jam, chocolate pulp.

Chamber volume	3200ml	Number of agitators	Two
Planetary ratio	31:14	Cylinder stroke	260mm
Heating	Oil and water circulation heating	Heating medium	the die temperature
- The power of the die temperature	9KW	Max. temp	220P
			J
Cooling	Water circulation cooling	Temperature sensor	J type thermocouple
	,		60*60*1100
Security Settings	Insulation sleeve,Mechanical lock device	Size
