Small Laboratory Type High Shear Emulsifier Homogenizer for Sale

Product Description

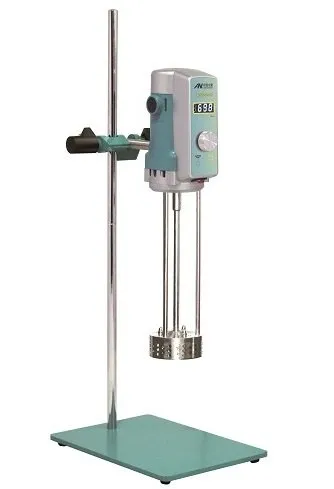

Product Description The dispersing homogenizer is driven by a high-speed motor, which is suitable for mixing low to medium and high viscosity liquids or distributing materials in liquid media, breaking tissue cells, etc. Drive output and working head positioning integrated structure, the operating state is more stable; the working head is made of high-quality stainless steel, and the experimental application area is wide; the operating speed micro-processing control, with real-time compensation for speed changes caused by load changes and power fluctuations, and constant speed Reliable; built-in soft start and automatic overload protection to ensure the safety of continuous operation at full load for a certain period of time; the speed is steplessly adjusted to meet the requirements of the experiment to revise the operating speed at any time. The digital display speed is intuitive, and the experimental data collection is convenient; the running timing control ensures the effective control of the experimental time.
Detailed Photos Product Parameters

Model	AE500S-P 70G	AE500S-P 90G
Rated voltage	220±10 % VAC	220±10 % VAC
Rated frequency	50/60 Hz	50/60 Hz
Input power	850 W	850 W
Output power	500 W	500 W
Rated torque	34.1 N.cm	43.3 N.cm
Work mode	S1(Continuous)	S1(Continuous)
Operation control mode	Combined control knob	Combined control knob
Speed range	2000~14000 rpm	2000~11000 rpm
Speed control	Continuously Adjustable, Stepless	Continuously Adjustable, Stepless
Speed display	LED, indicator bar	LED, indicator bar
Timing control range	NO	NO
Dynamical Speed detection function	Yes	Yes
Speed memory function	Yes	Yes
Overload protection function	Yes	Yes
Peak torque of the stirring head	34.0 N.cm	43.2 N.cm
Maximum line speed of the rotor	20.5 m/s	22 m/s
Stirring head material	AISI 304	AISI 304
Stirring head diameter	±70 mm	±90 mm
Min./max.height of the liquid immersed	50/236mm	50/236mm
Standard layout of stator	5mm2 20mm2 50mm2	5mm2 20mm2 50mm2
Mixing capacity(H2O)	500~40000 ml	800~60000 ml
Max viscosity	8000 mPa.s	8000 mPa.s
Permissible ambient temperature	Lower than 40ºC	Lower than 40ºC
Permissible relative humidity	Less than 80%	Less than 80%
Size of the mixer (TxBx H)	215 x310x 720 mm	250 x350x 720 mm
Net weight	9.5kg	11kg

Parameter of working shaft:

Working head	12G	18G	24G	30G	36G
Mixing capacity (H2O, ml)	30~800	50~1500	80~5000	100~8000	150~13000
Max viscosity(mPa.s)	5000	5000	5000	6000	7000
Max. rotation speed(m/s)	12	15	18	22	26
Min./max.immersion depth(mm)	35/150	45/160	50/165	60/170	65/175
Size of stator(mm)	Ø12	Ø18	Ø24	Ø30	Ø36
Legth(mm)	215	242	245	255	258
Max temperature(ºC)	120	120	120	120	120
Working head material	SS316L	SS316L	SS316L	SS316L	SS316L
