Chocolate Conche and Refiner Machine 2000kg
| US$24,000.00-26,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JMJ2000
Certification
CE, ISO9001
Power Source
Electric
Process
Mild Processing
Automatic Grade
Automatic
Application
Chocolate
Customized
Non-Customized
Type
Electric Blade Tightening
Capacity
2000L
Temperature Control
Automatic
Products
Chocolate Paste,Peanuts Butter
Transport Package
Wooden Box
Specification
CE, SGS, ISO9001
Trademark
Lejoy
Origin
Suzhou, Jiangsu, China (Mainland)
HS Code
84382000
Production Capacity
5 Sets /Month
Product Description

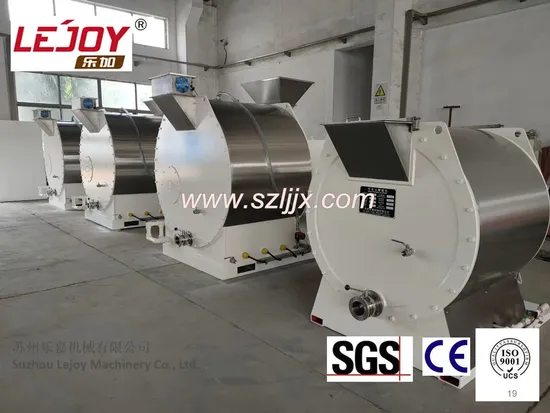

JMJ2000 Chocolate conche and refiner
Main parameter:
Max capacity: 2000L
Fine grinding grain: 20-25um
Fine grinding time: 18-22H
main enginee power: 37KW
Heating power :9 kw
Weight:7000KG
Outside dimension: 3320*2000*1950mm
Features :
Helical gear drive
Electric blade tightening
Electric heating
Equipped with electric box,all wires connected ready
20crMnTi with carburizing treatment for gear
Automatic temperature control
Materials:
Lining cord and scrapers are 65 manganese steel (with heat treatments)
Covering with stainless steel 201
Stainless steel 304 butterfly discharging valve
Equipped with one extractor fan
Chinese brand motor
Chinese brands electrical components
.
| Model | JMJ40 | JMJ500A | JMJ1000A | JMJ2000A | JMJ3000A |
| Max capacity(L) | 40 | 500 | 1000 | 2000 | 3000 |
| Fineness(μ m) | 25-20 | 25-20 | 25-20 | 25-20 | 25-20 |
| Duration(h) | 7-9 | 12-18 | 14-20 | 18-22 | 18-22 |
| Main power(kW) | 2.2 | 15 | 22 | 37 | 55 |
| Heating power(kW) | 2 | 6 | 6 | 9 | 9 |
| Machine Weight(kg) | 360 | 2800 | 3500 | 6000 | 8500 |
| Outside dimension(mm) | 1100*800*850 | 2500*1080*1370 | 2780*1330*1800 | 3320*2000*1950 | 4200*2000*1950 |
