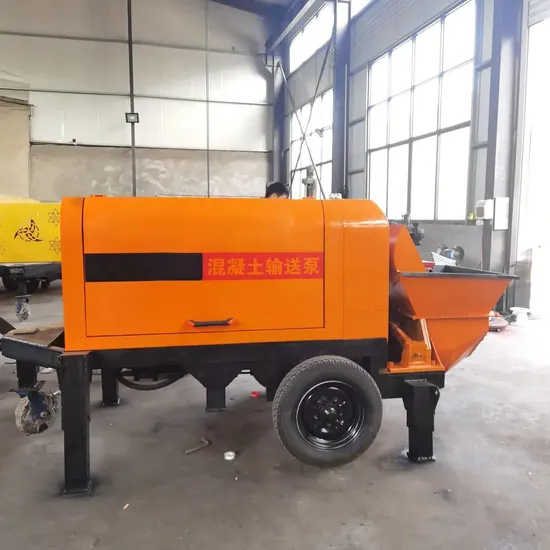

Diesel Concrete Pumping Machine Mini Portable Concrete Pump Machine for Sale
| US$5,260.00-9,850.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YGC20
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Vacuum
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1370mm
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Name
Concrete Pump
Power Type
Electric/Diesel
Voltage
380V/50Hz, Customized
Power
52kw
Maximum Pumping Horizontal Distance
1350m
Maximum Pumping Vertical Distance
275m
Output Pressure
9.2MPa
Delivery Cylinder Diameter
200*1800mm
Upper Hopper Capacity
0.8 M3
Discharge Capacity of Mixer
0.45 M3
Rotating Speed
1480 R/Min
Hydraulic Tank Capacity
500L
Maximum Bone Particle Size
40mm
Keywords
Concrete Secondary Structural Column Pump
Machine
Portable Diesel Concrete Mixer with Concrete Pump
Transport Package
Container/Wooden Case
Specification
6000*2100*2250mm
Trademark
Yugong
Origin
Henan
HS Code
841340000
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
400.00cm * 300.00cm * 400.00cm
Package Gross Weight
800.000kg
Product Description
High Quality S Tube Valve Mini Concrete Pump Machine For Sale Product DescriptionConcrete pump, also known as concrete pump, consists of a pump body and a conveying pipe.
It is a kind of machinery that uses pressure to continuously transport concrete along pipes.
It is mainly used in house construction, bridges and tunnel construction. At present, it is mainly divided into gate valve concrete pump and S valve concrete pump.
Another is to install the pump body on the chassis of the car, and then equip the pump with a telescopic or inflected cloth boom.
| Technical parameters of trailer mounted concrete pump | |||
| Model | HBT601390ES | HBT6016110ES | HBT801390ES |
| Maximum through(m³/h) | 67/43 | 65/41 | 80/53 |
| Delivery Pressure(Mpa) | 13/7 | 16/11 | 13/7 |
| Delivery Distance V/H(m) | 280/1200 | 350/1500 | 280/1200 |
| Distribution Value | S-Tube valve | ||
| Conveyor cylinder(mm) | Ф200*1600 | Ф200*1600 | Ф200*1800 |
| Hopper volume(m³) | 0.8 | ||
| Rated power(kw) | 90 | 110 | 90 |
| Rated engine speed(r/min) | 1480 | ||
| Hydraulic tank capacity(L) | 500 | ||
| Weight(kg) | 5800 | 6000 | 6000 |
| Dimensions(mm) | 6000*2100*2250 | ||
| Technical parameters of trailer mounted concrete pump | |||
| Model | HBT8013110ES | HBT8018132ES | HBT8016110ES |
| Maximum through(m³/h) | 86/60 | 83/56 | 80/60 |
| Delivery Pressure(Mpa) | 13 7 | 18 11 | 16 11 |
| Delivery Distance V/H(m) | 310/1400 | 370/1800 | 350/1500 |
| Distribution Value | S-Tube valve | ||
| Conveyor cylinder(mm) | Ф200*1800 | ||
| Hopper volume(m³) | 0.8 | 0.8 | 0.7 |
| Rated power(kw) | 110 | 132 | 110 |
| Rated engine speed(r/min) | 1480 | ||
| Hydraulic tank capacity(L) | 500 | ||
| Weight(kg) | 6000 | 6500 | 6200 |
| Dimensions(mm) | 6300*2100*2250 | ||
