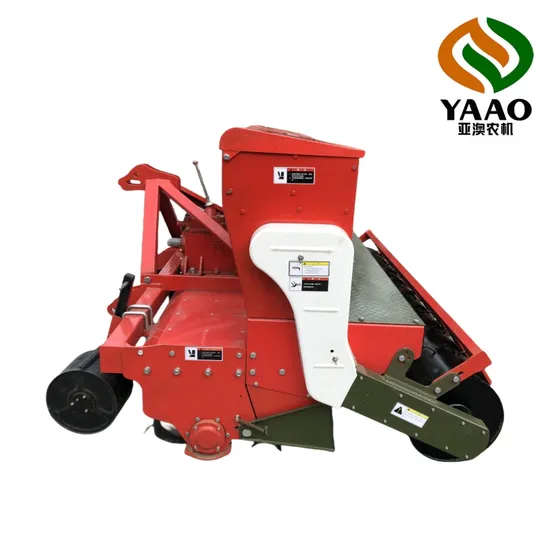

High Efficiency Agricultural Machinery Seeder 2bmg-10 (5) (180)

Product Description

Product Description
It is suitable for rotary tillage of farmland, also, it's suitable for mid-ploughing, soil cultivation, weeding,fertilizing, turning over and covering green manure during the growing period of crops, ploughing and tilling of vegetable fields and sugarcane fields, ridging, and mulching and covering film. Product Parameters

Model				3ZFM-2	3ZFM-3
Working rows				2	3
Width(cm)				180	300
Tillage width(cm)				60x2	60x3
NO. of blades				16	24
Productivity (ha/h)				0.27-0.81	0.35-1.04
Working speed (km/h)				1-5
Earthing/ridging plough type				Plow
Earthing/ridging plough numbers				2	3
Fertilizer tank volume (L)				180x2	180x3
Fertilizer application (kg/ha)				75-1800
Dimension(mm) (Length x width x height)				2000x2050x1350	2000x3250x1350
Weight(Kg)				600	800
Tillage depth(cm)				8-16
Row Spacing(cm)				90-120(adjustment)
Tract power	Power	KW	36.8-58.8		58.8-88.2
		HP	50-80		80-120
		Matching fertilization function operation: Tractor supporting power increased by 15hp
	Hitching type	Standard three-point mounted
	Power transmission mode	intermediate drive
Blade type		R245

The fuction of prodduct
1.Combination of frame subsoiler and a rotary tiller, which can be used in combination or separately;The forward speed is one gear higher and the efficiency is high. It has no plowing congestion and stronger possibility
2.The disk, shovel tip and wing shovel are made of special wear-resistant materials, which can be used for a longer time. The top is solid and the bottom is weak, the bottom is both solid and weak, and the bottom rathole is large with strong water storage capacity; and the drought-resistant capacity is high.
3.Disc, shovel tip, wing shovel can be replaced separately, which makes maintenance is more convenient.
4.No deformation of the plow frame and column within the design range, and wear resistance of the plow tip and wings.
5.The use of YAAO patented combination of single deep loosen type structure (Patent No.: 201410850252.3&201420866031.0), tested by the Northwest Agriculture and Forestry University (NWAFSU), the deep loosen effect saves 15-45% of power under the same conditions, minimizes power consumption and minimizes emissions
