High-Capacity Tracked Mobile Screen with Advanced Mesh Model for Heavy-Duty Applications

Product Description

NFS

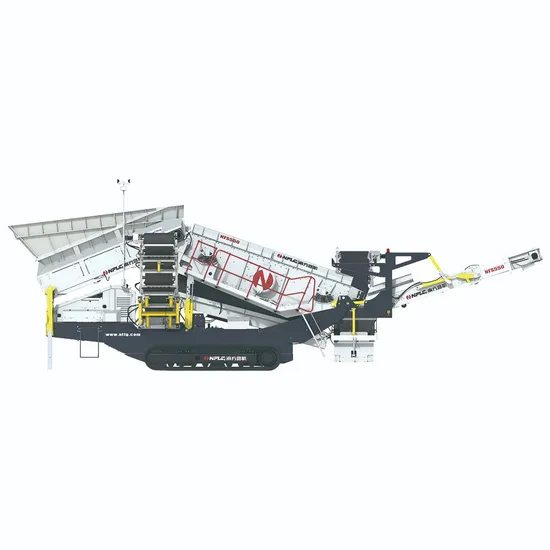

Tracked Mobile Screen
NFLG's tracked mobile screen is designed to excel in various application conditions. Whether operating independently or as part of a group, it boasts large production capacity and ultra-high stability. Primarily, it's used for separating sand and gravel in quarries, early-stage mine construction surface soil treatment, screening of engineering waste slag and tailings, construction waste recovery and utilization, as well as pebble, coal, and aggregate screening. Product Description
Product Parameters

Model	Mesh model	Throughput(mtph)	Maximum feeding size(mm)	Deck	Drive method	Power	Transportation dimension(m)	Weight(t)
NFS350	3NYK1560	500	150	3	Hydraulic drive	96.5	19*3.0*3.6	39 standard configuration
NFS550	2NYK1548	500	500	2	Hydraulic drive	96.5	14.7*3.0*3.8	33 standard configuration
NFS550CZ	NFCZ1548	200	300	2	Hydraulic drive	96.5	14.7*3*3.8	32 standard configuration
NFS780	3NTH1860	800	150	3	Hydraulic drive	140	19*3.0*3.6	46 standard configuration

Detailed Photos A renowned brand engine powers the machine, ensuring stability and reliability.
The feeding machine can be fitted with single or double layers, allowing for effective pre-screening of large materials in single operations.
An 8m³ large-capacity receiving hopper efficiently caches materials, ensuring continuous and stable input.
The machine features hydraulic folding technology, enabling rapid transitions between transport and working states.
The large-size material belt conveyor can be used for direct stacking or as a belt conveyor.
Company Profile After Sales Service
FAQ 1 : Are you the original manufacturer?
A: Yes. We are NFLG, a leading official manufacturer in construction machinery based in China.
Core products include:
A. Asphalt Mixing, Concrete Mixing, and Dry Mortar Mixing (Engineering Mixing);
B. Mobile Crusher & Screen, Stationary Crusher & Screen, and Sand Making and Shaping Equipment (Materials Processing);
C. Construction Waste Processing Solutions, Waste Sludge & Soil Recycling Solutions, and Decoration Waste Processing Solutions (Construction Waste Processing).
2: What types of payment are accepted?
A: We typically accept payment via T/T or L/C terms.
3: Do you provide equipment operation training?
A: Yes. We can dispatch professional engineers to the site for equipment installation, adjustment, and operation training.
4: What is the delivery time?
A: Delivery is typically 45 days after receiving the deposit.
5: What is the warranty period?
A: The warranty period is 12 months after shipment.
6: What is the Minimum Order Quantity?
A: The MOQ is 1 piece.
