for DELL 100GBASE-CR4, QSFP28-QSFP28 Passive, DAC Cable

Product Description

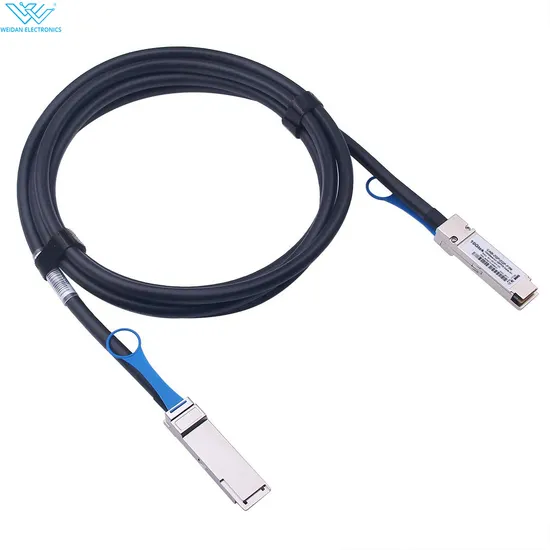

DELL 100GBASE-CR4, QSFP28-QSFP28 Passive, DAC Cable
The Dell 100GBASE-CR4 QSFP28-QSFP28 Passive Direct Attach Copper (DAC) Cable is a high-performance interconnect solution designed for modern data centers and high-speed networking environments. With support for up to 100Gbps data rates, this cable ensures efficient and reliable data transmission across short distances.
Specifications:
Length Options:
0.5M to 3M: AWG30 cable for 100GBase-CR4, Passive DAC.
5M: AWG26 cable for 100GBase-CR4, Passive DAC.
Connector Type: QSFP28 to QSFP28+.
Maximum Data Rate: 100Gbps.
Operating Temperature: 0°C to 70°C.
RoHS Compliance: Fully compliant with RoHS standards.
Features:
High Performance: Supports up to 100Gbps data rate, ensuring optimal throughput for demanding network environments.
Enhanced EMI Protection: Excellent electromagnetic interference (EMI) performance to minimize signal disruption.
Versatile Length Options: Available in various lengths to suit different deployment needs, ranging from 0.5M to 5M.
Compact and Reliable: Built with high-quality materials for long-term reliability and robust performance in data centers.
Electrical:
Cable Type: Passive DAC with AWG30 (0.5M-3M) and AWG26 (5M) configurations.
Signal Integrity: Engineered for superior signal transmission with minimal loss across the specified lengths.
Power Efficiency: Passive design requires no external power source, reducing overall power consumption.

Approval

CE, ROHS, REACH
