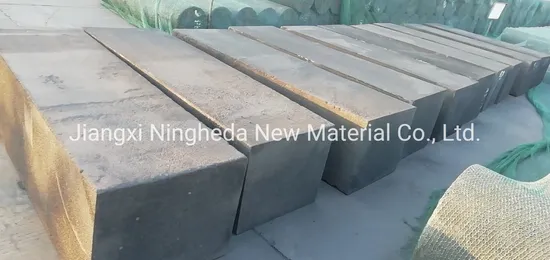

Graphite Square Block Graphite Cube for Heat Exchanger Exothermic Welding
| US$1,000.00-6,000.00 | 1 Ton (MOQ) |
Basic Info.
Model NO.
NX-82
Grain Size
0.8mm/2.0mm
Product Name
Graphite Squre Block
Name
Vibrated Molded Graphite Block
Density
1.72g/cm3
Grade
HP
Type
Graphite Block
Composition
Graphite
Forming Way
Vibrated Molded Graphite
Crystal Morphology
Artifical Graphite
Transport Package
Wooden Box
Specification
Customization
Trademark
Ningheda
Origin
China
HS Code
380110
Production Capacity
20000tons
Product Description
Graphite square Block Graphite cube for heat exchanger Exothermic weldingJiangxi ninghe da offers medium-grain graphite blocks and graphite rounds with Vibration forming method. The standard grades TSK, which have a max. grain size of 0.8mm (0.03") and 2.0mm (0.08") respectively.
Our products have the advantages of high density, low electrical resistivity, anti-oxidation, anticorrosion, thermostability, good electric conductivity, etc. It's widely used in Powder metallurgy, Casting molds and furnace parts for hot metal, Crucibles for melting and alloying, Quartz processing and semiconductor industries.
| Material | Size(mm) | Grain size mm | Material Technical Data |
| Medium Graphite | 365*365*2030 | 0.8 | Bulk Density (≥g/cm3):1.72 Compressive Strength (≥MPa): 35 Flexural Strength(≥MPa): 13.5 Specific Resistance (≤μΩm): 8.5 Thermal expansivity(X10-6K-1): 2.2 Ash: ≤0.2% |
| 425*425*2030 | 0.8 | ||
| 700*350*2400 | 0.8 | ||
| 365*365*2030 | 2.0 | Bulk Density (≥g/cm3):1.72 Compressive Strength (≥MPa): 30 Flexural Strength(≥MPa): 13 Specific Resistance (≤μΩm): 8.5 Thermal expansivity(X10-6K-1): 2.2 Ash: ≤0.2% | |
| 425*425*2030 | 2.0 | ||
| 525*525*2030 | 2.0 | ||
| 525*625*1950 | 2.0 | ||
| Φ380*2030 | 2.0 | ||
| Φ425*2030 | 2.0 | ||
| Φ525*2030 | 2.0 | ||
| Φ625*2030 | 2.0 | ||
| Φ800*1100 | 2.0 | ||
| Φ900*1100 | 2.0 |
Graphite square Block Graphite cube for heat exchanger Exothermic welding
