6.5-Ton Wholesale Multi-Model Vertical High Spray Hay Cutter Automatic Hay Cutter Grass Cutter Grass Cutter

Product Description

6.5-Ton Wholesale Multi-Model Vertical High Spray Hay Cutter Automatic Hay Cutter Grass Cutter Grass Cutter
Product Description
1. The oversize product is 3.8-15 tons/hour. The cutting length is adjustable, which can cut wet and dry grass, and the yield is stable and high.
2. Suitable for all grasses, such as corn stalk, straw, radish, potato, sweet potato, cassava, etc.
3. Wheels at the bottom, easy to move. This machine is small and light. Save labor and time, simple operation and long service life.
4. Cutting grass, shredding, crushing, corn, automatic feeding, and dual use of diesel and electricity.
5. Thicken the plate, widen and enlarge the feed inlet, galvanize the chain bars, and increase the cutter head with silicon alloy blades.
6. Give away tools for free
7. Exported to more than 30 countries and regions
Product Parameters
More Models for your Choose :
Cutting and grinding powder integrated machine:

Model	Output capacity	Power(kw)	Weight (kg)	Wooden Packing Size(mm)
9ZR-380	3800kg/h	4KW	90	1470×500×830
9ZR-450	4500kg/h	4.5-5.5KW	100	1680×500×880
9ZR-480	4800kg/h	4.5-5.5KW	125	1780×530×930
9ZR-550	5500kg/h	5.5KW	130	1780×560×980
9ZR-580	5800kg/h	7.5KW	160	2130×600×980
9ZR-680	6800kg/h	7.5-11KW	200	2200×610×990
9ZR-800	8000kg/h	11KW	230	2450×750×1050

High Spray Hay Cutter:

Model	9Z-1.2	9Z-2.5A	9Z-4.5A	9Z-6.5A	9Z-8A	9Z-10A/15A
Supporting power	3kw	3kw	5.5w	7.5-11kw	11kw	15-18.5kw
Motor rated speed	2800rmp	2800rmp	1440rpm	1440rpm	1440rpm	1440rpm
Machine output	1200kg/h	2500kg/h	4500kg/h	6500kg/h	8000kg/h	10000kg/h
Number of blades	6	6	4	3/4	3	3/4
Number of flail knife	18	18	16-20	9/12	15	15-24
Dimensions	880*1010*1750 MM	1050*1180*1600 MM	1750*1420*2380 MM	2147*1600*2735 MM	2350*1890*3090 MM	2630*2500*4100 MM
Discharge length	7-35MM	7-35MM	10-35MM	10-45MM	10-35MM	10-35MM
Feeding method	Hand feeding	Automatic feeding
Structure type	Disc type	Guillotine kneading	Disc type	Guillotine kneading	Disc type	Disc type
Machine weight (excluding motor)	80KG	125KG	300KG	400KG	550KG	950KG

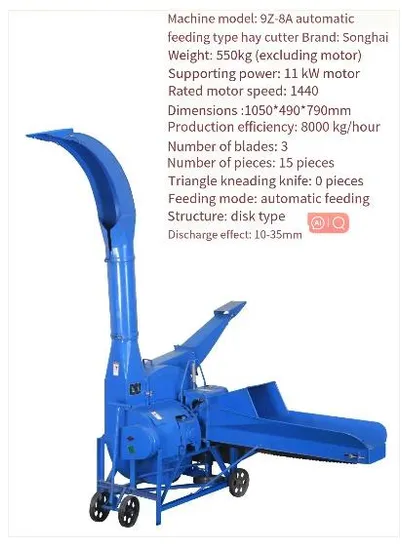

Detailed Photos
Safe operation and maintenance:
1. The supporting power must meet the requirements and it is not allowed to increase the spindle speed without authorization.
2. Before starting the machine; Check if the running direction of the machine is the same as the hoe cutting direction, otherwise it is strictly prohibited to start the machine.
3. Materials that need to be hoed and cut must not be mixed with hard objects such as metal and stones, otherwise it may cause damage to the machine.
4. After a few hours of machine operation, it is necessary to observe whether each component is loose and regularly add grease to the bearings.
5. When feeding materials, the operator's hand is strictly prohibited from approaching the blade to avoid personal injury accidents. The feeding should be evenly and in moderation, not too much or too little, fast and slow.
6. During work, if grass blockage or other faults are found, the power should be immediately turned off and the fault should be eliminated before starting the operation. It is strictly prohibited to operate the machine with faults.
7. Non staff members and those who are not familiar with the performance of the machine's mechanism are not allowed to start the machine casually.
8. When the machine is not in use for a long time, it should be stored indoors or in a shed to prevent rusting.
Factory show
Packaging & Shipping
Attentive responsible service
Pre-sales service
1.Tailor-made efficient technical solutions for you. 2.Tell us your needs, we will recommend the machine to you, professionally introduce the machine 3.Service consultation in 365 days a year. 4.24 hours to respond to messages in a timely manner service During the project 1.Standardized precision production of production orders in 8 major departments. 2. The operation of the machine will be tested before delivery, video will be given to the customer, and the machine will be checked and accepted 3.The entire production process is visualized, which is convenient to check the production progress at any time. 4.The idling machine test is combined with the feeder test - strict quality inspection. After-sale service 1. Accepting service consultation in 365 days a year. 2. Our after-sales engineer can come at any time for maintenance. 3. We will return customers on a regular basis, to ensure proper operation of the production line. 4. We provide accessories for all equipment.
FAQ
1. Could I have prices of your products ?Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.2. Can we customize our logo/website/company name on products?Yes, we offer OEM and ODM service.3. Can I get a discount?Yes, the more quantity, the better the price. Please contact us to get the best price.4. Do you inspect the finished products?Yes, each step of production and finished products will be came out inspection by QC department before shipping.5. Where are you? Can we go to China and visit your factory?Yes, of course. We are in Henan, China. Welcome to our factory.
6. What's the delivery method?Normally by shipping line packed by wooden case in 20GP or 40 Feet container. Air express also available.
7. How do I operate the machine?
1)We offer the best operation manual with the machine.
2)Specific drawings or teaching videos are offered, if necessary
8. How do I get the machine?
1) Contact me for latest prices. We confirm the products details.
2)We send you the Pl with our bank account
3)We prepare the products after we get your advanced deposit
4)We send you photos of the machine before and after packing
5)You pay the balance, we deliver the machine
6) We send you the B/L and other papers, keep track till you get the machine
